09120063041
| Manufacturer | |
| Description | Conn Housing M 7 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN Q4/2 CRIMP TERM HAN Q 4/2 MALE INSERT CRIMP TERM HeavyDutyPowerConnectorsMALEINSERTHANQ4/2CRIMPTERM Han Q Male Insert: Han Q 4/2 Male Insert Crimp Term Harting Han Q 系列 3行 7针 插头 电源连接器 |
| Category |
Business
| Part # Aliases | 006 09 09-12-006-3041 12 3041 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 690 V | Current Rating (Max) | 40 A |
| Voltage - Input (Min) | 690V | ||
Mechanical
| Color | Gray | Depth | 48.2 |
| Height | 22.4 | Packaging | Bulk |
| Wire Gauge | 10-26 | Orientation | 直 |
| Weight (g): | 21.00000 | Contact Form | Han® C, Han® D |
| Contact Type | Han® C, Han® D | Mounting Type | Straight |
| Connector Type | Insert without Contacts | Mounting Style | Straight |
| Number of Rows | 3 | Insertion Force | Male |
| Housing Material | Polycarbonate | Length - Overall | 41.6 |
| Termination Style | Crimp | Number of Contacts | 7 |
| Number of Positions | 4+2+Ground | ||
Product Info
| Type | Housing | Gender | M |
| Series | Han Q | CAD Drawing | 3D CAD 模型 |
| Product Type | Inserts | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
09150006123
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 20 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 20 Han-Com(R) crimp gold contact,0.5sq.mm HANDMCrimpContactAWG20 Contact; male; 0.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09140010311
Harting Technology Group
Connector Accessories 1 POS Hood Metal Heavy Duty Power Connectors HAN M25 CARRIER HOOD METAL SIDE ENTRY HAN-MODULAR COMPACT CARRIER HOOD Connector, carrier hood, top entry Han1Modcarrierhood Han-Modular Metal Hood: Han 1Mod carrier hood Harting HAN Modular 系列 顶入 电源连接器
09150006124
Harting Technology Group

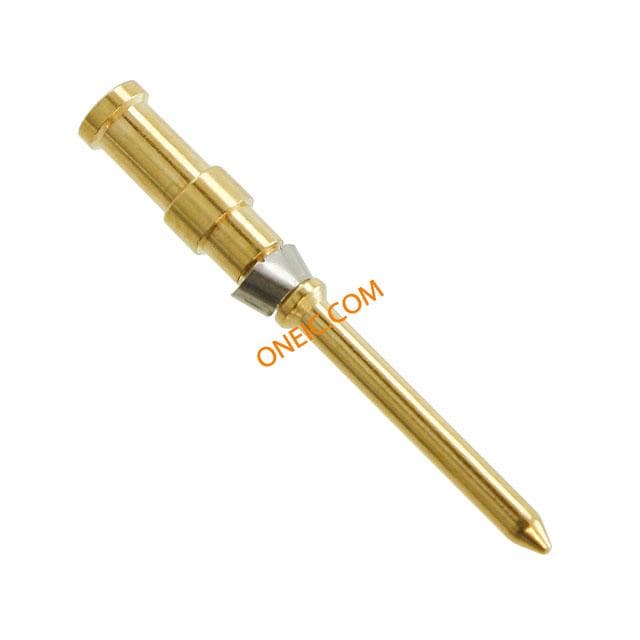

Contact PIN Crimp ST Heavy Duty Power Connectors HAN D MALE AWG 26-22 GOLD PLATED CRIMP HAN D M CRIMP CONT AU AWG26-22 HAN DM Crimp Contact AWG 26-22 Conn Contact M 1 POS Crimp ST HANDMCrimpContactAWG26-22 Contact; male; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Male Contact: Han D M Crimp Contact Au AWG 26-22 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09120080527
Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors PLASTIC HOOD STD BLK 1 LVR LCKING HAN Q 8/0 HOOD SIDE PG 16
09150006121
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 16 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 16 Han-Com(R) crimp gold contact,1.5sq.mm Connector,MaleContact Contact; male; 1.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 16 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09320006107
Harting Technology Group

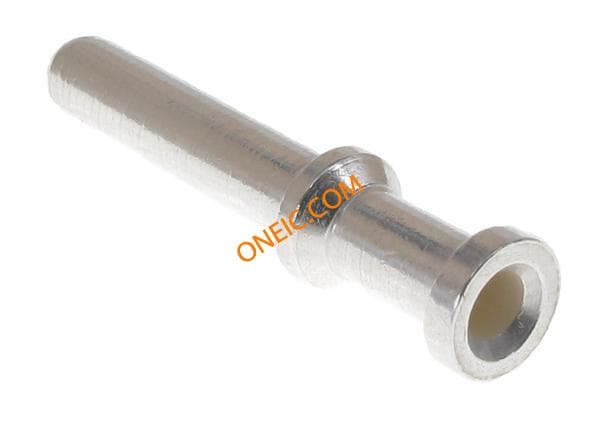

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC MALE CRIMP 4mm2 CROSS SECTION HAN HSC MALE CRIMP CONT LEVEL Conn Contact M 1 POS ST 1 Terminal 1 Port Connector;MaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; male; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Male: Han HsC Male Crimp Contacts Level 4 mm
09150006103
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 20 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AWG 20 Han-Com(R) crimp pin contact,0.5sq.mm 09150006103 Connector;MaleInsert;SilverPlated20AWGCrimpContact;HanDDModular Contact; male; 0.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 0,5 QMM-AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006105
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A MALE AWG 18 SILVER PLATED HAN D M CRIMP CONTACT AG Han-Com(R) crimp pin contact,0.75sq.mm CRIMP PIN, HAN, 0.75MM HanDMCrimpContactAg Contact; male; 0.75mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006101
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 16 SILVER PLATED CRIMP HAN D M CRIMP CONT AWG16 Han-Com(R) crimp pin contact,1.5sq.mm Connector;MaleInsert;SilverPlated16AWGCrimpContact;HanDDModular Contact; male; 1.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 1,5 QMM-AWG16 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09320006104
Harting Technology Group

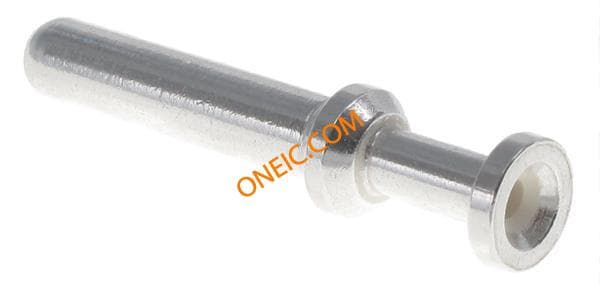

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC MALE CRIMP 1.5mm2 CROSS SECTION HAN HSC MALE CRIMP CONT 16 AWG Han HsC Male Crimp Contact 16 AWG HANHSCMALECRIMPCONTACT16AWG Contact; male; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列 公插 压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器
09150006106
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 14 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AG AWG 14 Han D Male Crimp Contact Ag AWG 14 Connector;Male Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;MaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; male; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag AWG 14 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09140010301
Harting Technology Group
Connector Accessories 1 POS Housing Metal Heavy Duty Power Connectors HAN HOUSING BULKHEAD METAL 1 LEVER HAN-MODULAR COMPACT HOUSING Connector, bulkhead mounting, 1 lever HAN1MODBASEPANEL Han-Modular Metal Hood: Han 1Mod Base Panel Harting HAN Modular 系列 电源连接器
09150006125
Harting

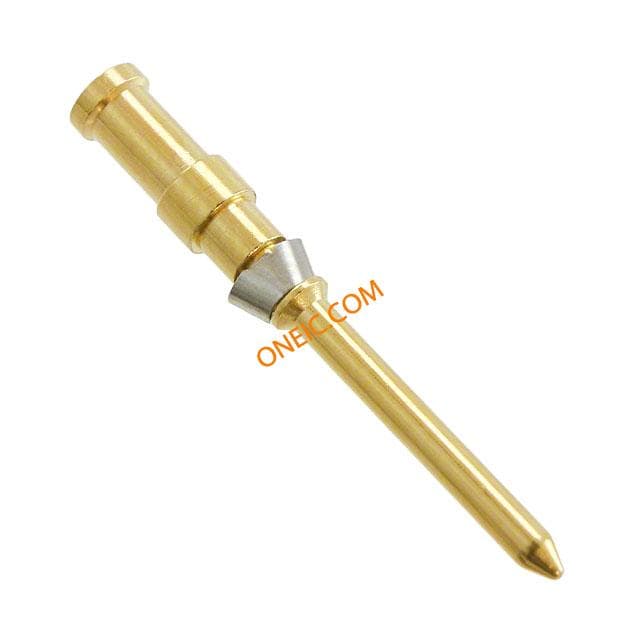

HAN D M CRIMP CONTACT AU Heavy Duty Power Connectors MALE CONTACT STD GOLD PLATED Han-Com(R) crimp gold contact,0.75sq.mm HeavyDutyPowerConnectorsMALECONTACTSTDGOLDPLATED Contact; male; 0.75mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
19120080428
Harting

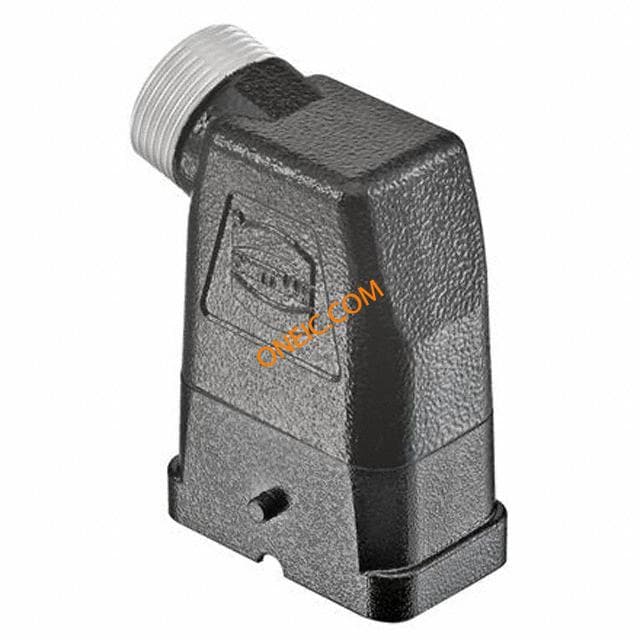

HAN COMPACT TOP HOOD M25 HC Harting HAN COMPACT TOPENTRY HOOD M25 HC NICKEL Heavy Duty Power Connectors HAN COMPACT TOPENTRY HOOD M25 HC NICKEL Han Drive Hood: Han Compact Top Entry Hood M25 HC nickel
19127080511
Harting
HAN COMPACT-GS-M25-SW-METAL Heavy Duty Power Connectors Han Compact-gs M25 SW Metal
19127080411
Harting
HAN COMPACT-GG-M25-SW-METAL Heavy Duty Power Connectors Han Compact-gg M25-SW-Metal
19120080429
Harting
HAN Q 8/0-GG-M25 Heavy Duty Power Connectors PLASTIC HOOD STD BLK 1 LVR LCKING HAN COMPACT PLASTIC HOOD M 25 STRAIGHT E HANCOMPACTPLASTICHOODM25STRAI Harting Han Q 系列 电源连接器
09120080301
Harting
HAN Q 8/0 BH HOUSING, METAL Heavy Duty Power Connectors HAN Q 8/0 HSNG HANQ8/0BHHousing,Metal Han Drive Housing: Han Q 8/0 BH Housing, Metal Harting Han-Compact 系列 电源连接器 , 隔板安装
19120080528
Harting

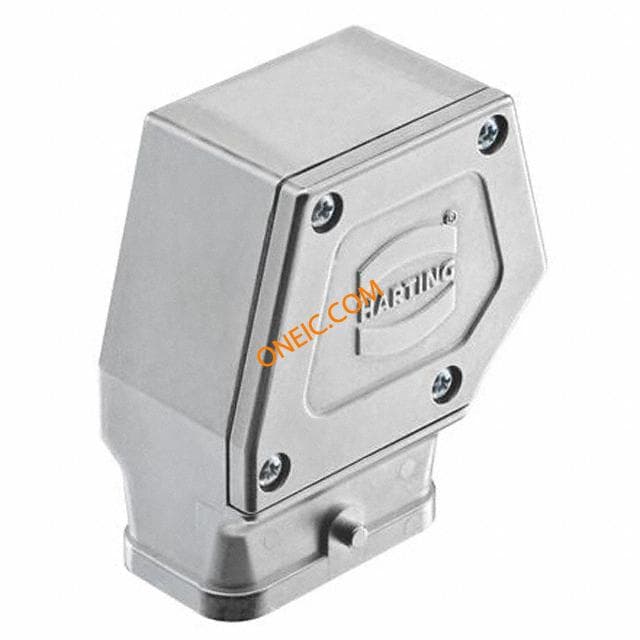

HAN COMPACT SIDE HOOD M25 HC Harting HAN COMPACT SE HOOD M25 HC Han Drive Hood: Han Compact Side Entry Hood M25 HC
09120063141
Harting

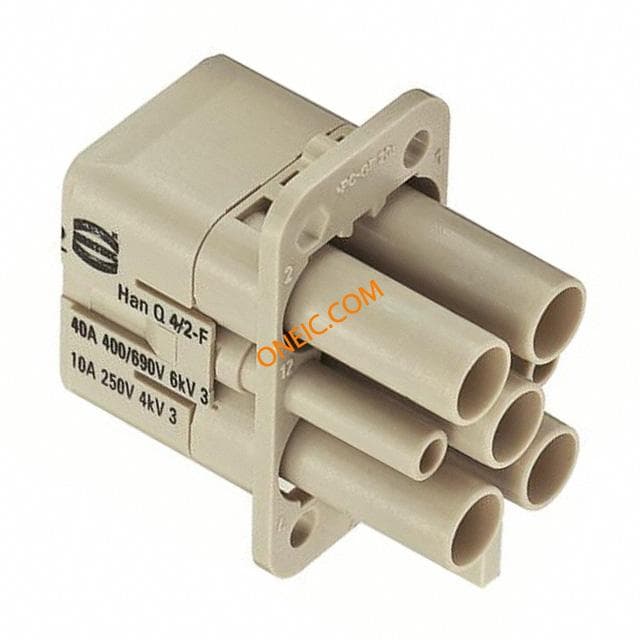

HAN Q 4/2 FEMALE CRIMP TERM Heavy Duty Power Connectors FEMALE INSERT HAN Q4/2 CRIMP TERM FEMALEINSERTHANQ4/2 Han Q Female Insert: Han Q 4/2 Female Insert Crimp Term Harting Han Q 系列 3行 7针 插座 电源连接器
