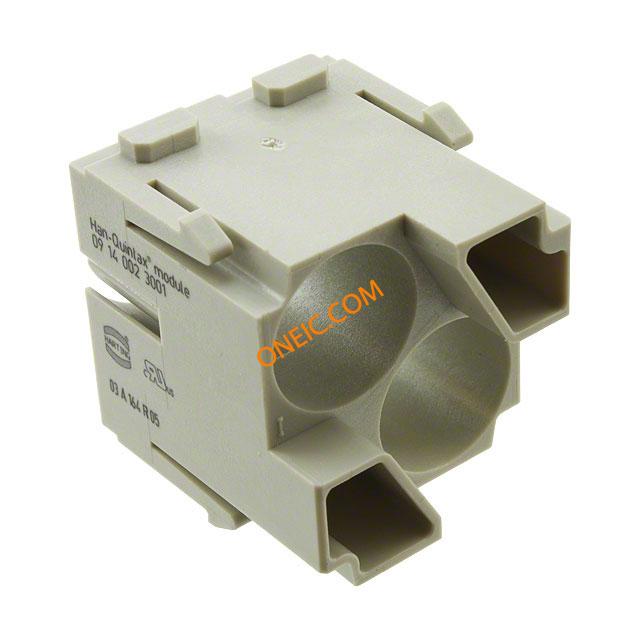

09140023001
| Manufacturer | |
| Description | Conn Housing M 2 POS Crimp ST Heavy Duty Power Connectors HAN QUINTAX 2P MALE ORDER CONTACTS SEP HAN-QUINTAX MODULE, MALE Han(R) Quintax pin insert housing module Han-Quintaxmodule,male Connector: HAN; module; male; Han Modular; 50V; 500cycles; UL94V-0 Han-Modular Modules: Han Modular 2/4 Module Male Quintax Harting HAN Modular 系列 2 路 公插 RJ45-Rangierfeld , 额定电流 10A/ 50 V |
| Category |
Business
| Part # Aliases | 002 09 09-14-002-3001 14 3001 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Test | 800V | Voltage Rating | 50 V |
| Current Rating (Max) | 10A | Insulation Resistance | 10GΩ |
| Voltage - Input (Min) | 50V | ||
Mechanical
| Depth | 34 | Height | 29.3 |
| Weight | 0.02 kg | Wire Gauge | 14-26 |
| Weight (g): | 12.00000 | Mounting Type | Straight |
| Connector Type | male | Mounting Style | Straight |
| Insertion Force | Male | Width - Overall | 2 |
| Housing Material | Polycarbonate | Length - Overall | 34.2 |
| Package Quantity | 4 | Connector - Cable | module |
| Termination Style | Crimp | Number of Contacts | 2 |
| Material - Insulation | polycarbonate | ||
Product Info
| Spg | 4 | Type | Housing |
| Gender | M | Series | Han Modular |
| CAD Drawing | 3D CAD Model | Product Type | Inserts |
| Accessory Type | Insert Frame | Adapter Series | Han Modular |
| Specifications | Male | Measuring Range | Han Quintax |
| Number of Units | 1 | For Use With/Related Products | Han-Quintax® Modules |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40...70°C |
