09150083013
| Manufacturer | |
| Description | HAN HIGH DENSITY MALE (8 PIN) Heavy Duty Power Connectors MALE CONTACT HIGH DENSITY QUINTAX Han-Modular Contacts: Han 8 Quintax-M-c Harting HAN Modular 系列 8 路 公插 触点 , 额定电流 5A/ 50 V, 适用于2 触点模块 |
| Category |
Business
| Part # Aliases | 008 09 09-15-008-3013 15 3013 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 50V | Current Rating (Max) | 5A |
Mechanical
| Packaging | Bulk | Contact Type | Han® |
| Connector Type | Insert without Contacts | Insertion Force | Male |
| Housing Material | Polycarbonate (PC) | Termination Style | Crimp |
| Number of Contacts | 8 | Number of Positions | 8 |
Product Info
| Type | CONNECTORS | Gender | Male |
| Series | Han Q | Product Type | Contacts |
| Accessory Type | 高密度 Quintax 插入式 | For Use With/Related Products | 2 触点模块 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Similar Parts
61030000078
HARTING
D-Sub Contacts 28-24AWG MALE CNCT GIGIBIT MODULE CRIMP CONTACT MALE AWG 24/28 AFS CrimpcontactmaleAWG24/28AFS1

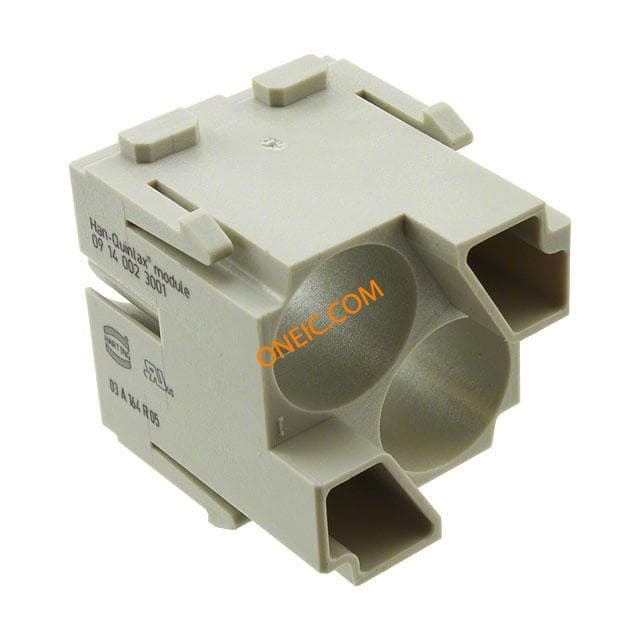

09140023001
