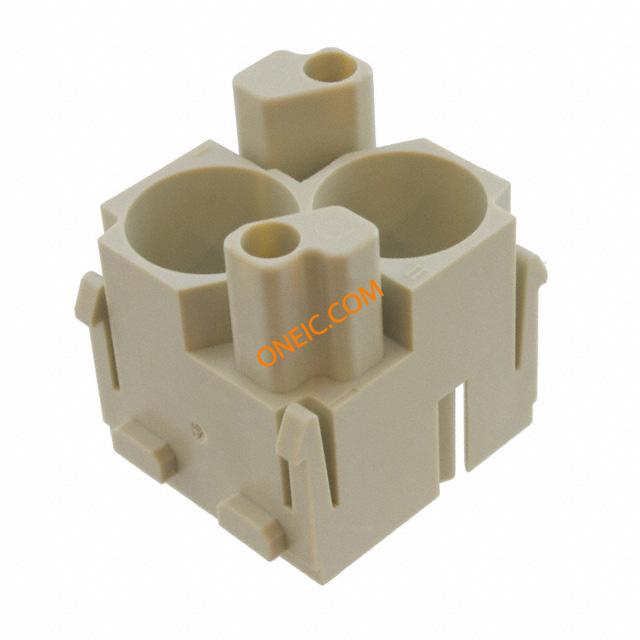

09140023101
| Manufacturer | |
| Description | HAN-QUINTAX MODULE, FEMALE Heavy Duty Power Connectors HAN QUINTAX 2P FEMAL ORDER CONTACTS SEP QUINTAX MODULE FEMALE HANMODULAR2/4MODULEFEMALEQUINTAX Connector: HAN; module; female; Han Modular; 50V; 500cycles; 10GΩ Han-Modular Modules: Han Modular 2/4 Module Female Quintax Harting HAN Modular 系列 2针 插座 电源连接器外壳 |
| Category |
Business
| Part # Aliases | 002 09 09-14-002-3101 14 3101 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Test | 800V | Voltage Rating | 50 V |
| Current Rating (Max) | 10A | Insulation Resistance | 10GΩ |
Mechanical
| Weight | 0.02 kg | Orientation | 直 |
| Weight (g): | 14.33300 | Connector Type | female |
| Mounting Style | Straight | Insertion Force | Female |
| Width - Overall | 2 | Package Quantity | 2 |
| Connector - Cable | module | Termination Style | Crimp |
| Number of Contacts | 2 | Material - Insulation | polycarbonate |
Product Info
| Spg | 2 | Type | CONNECTORS |
| Gender | Female | Series | Han Modular |
| CAD Drawing | 3D CAD Model | Product Type | Inserts |
| Accessory Type | Insert Frame | Adapter Series | Han Modular |
| Specifications | Female | Number of Units | 1 |
| For Use With/Related Products | Han-Quintax® Modules | ||
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40...70°C |
Similar Parts
09140023001
Harting Technology Group
Conn Housing M 2 POS Crimp ST Heavy Duty Power Connectors HAN QUINTAX 2P MALE ORDER CONTACTS SEP HAN-QUINTAX MODULE, MALE Han(R) Quintax pin insert housing module Han-Quintaxmodule,male Connector: HAN; module; male; Han Modular; 50V; 500cycles; UL94V-0 Han-Modular Modules: Han Modular 2/4 Module Male Quintax Harting HAN Modular 系列 2 路 公插 RJ45-Rangierfeld , 额定电流 10A/ 50 V
09150083113
Harting
HAN HIGH DENSITY FEMALE (8 PIN) Heavy Duty Power Connectors FEMALE CONTACT HIGH DENSITY QUINTAX Han-Modular Contacts: Han 8 Quintax-F-c Harting HAN Modular 系列 8 路 母座 触点 , 额定电流 5A/ 50 V, 适用于2 触点模块

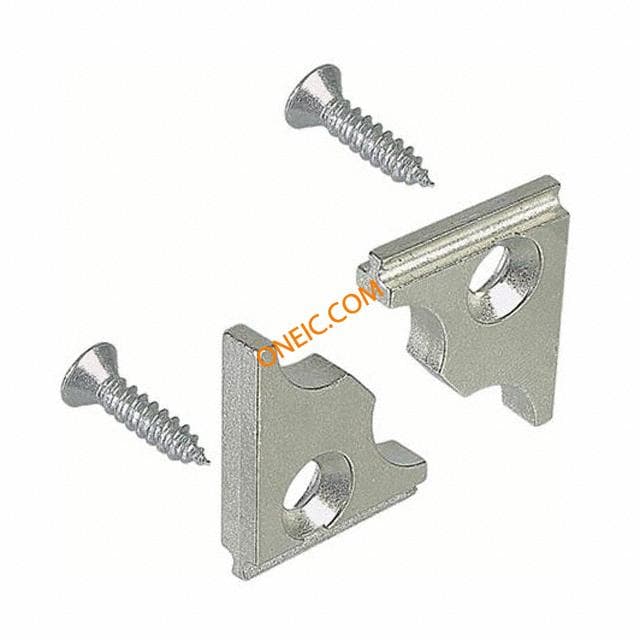

09140009915
