XRP7713ILB-F
| Manufacturer | |
| Description | DC DC Cntrlr Triple-OUT DPWM DC to DC Controller/Synchronous Buck Controller 4.75V to 25V Input 32-Pin TQFN EP Bulk IC REG CTRLR BUCK PWM 32-TQFN XRP7713ILB-F, PWM Soft Switching Controller, Triple DC/DC Converter, Switching Regulator, 1.5MHz, 32-Pin TQFN Switching Controllers 3Ch Dgtl Pwr Cntrllr w/LDO prog thru PC DC DC Cntrlr Triple-OUT PWM DC to DC Controller/Synchronous Buck Controller 4.75V to 25V Input Bulk Digital Power Controller TQFN-40, XRP7713ILB-F, Exar |
| Category |
Business
| Other Names | 1016-1349 | Standard Package | 490 |
| Factory Pack Quantity | 490 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Controller | Duty Cycle | 89% |
| Output Type | Adjustable | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | No |
| Voltage Rating | 5.1 V | Boost Converter | No |
| Frequency - Max | 1.5MHz | Current - Output | 5|5|5 |
| Voltage - Supply | 4.75 V ~ 25 V | Doubler Converter | No |
| Flyback Converter | No | Number of Outputs | 3 |
| Divider/Multiplier | No | Inverting Converter | No |
| Frequency - Switching | 1500 kHz | Number of Outputs and Type | 3 |
| Reverse Recovery Time (trr) | No | Voltage - Output Difference (Typ) @ Distance | Yes |
Mechanical
| Width | 5mm | Height | 0.73mm |
| Length | 5mm | Packaging | Bulk |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 32-WFQFN Exposed Pad |
| Package Cooled | TQFN | Package Quantity | TQFN EP |
| Size / Dimension | 5 x 5 x 0.73mm | Number of Positions | 32 |
Product Info
| Type | DPWM DC to DC Controller/Synchron... | Series | PowerXR |
| Function | Controller | Topology | Step-Down (Buck) |
| Multiplier | No | Manufacturer | Exar |
| Controller Type | DC to DC Converter and Switching Regulator Chip | Other Specifications | No |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts

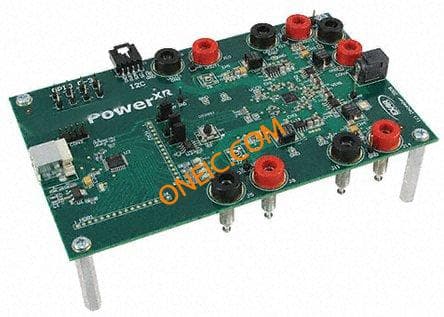

XRP7713EVB
Exar
Power Management IC Development Tools Evaluation Board for XRP7713 Series EVAL BOARD FOR XRP7713 Development Kit, Power Management With Evaluation Board for XRP7713
744314650
Wurth Electronics
固定インダクタ WE-HCI Inductor 6.5uH 100kHz 6A INDUCTOR POWER 6.5UH 6.0A SMD Inductor SMD high current WE-HCI 6.5uH Fixed Inductors WE-HCI Inductor 6.5uH 100kHz 6A INDUCTOR, SMD, HIGH CURRENT 6.5UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 6.5 μH ±20%, 6A Idc

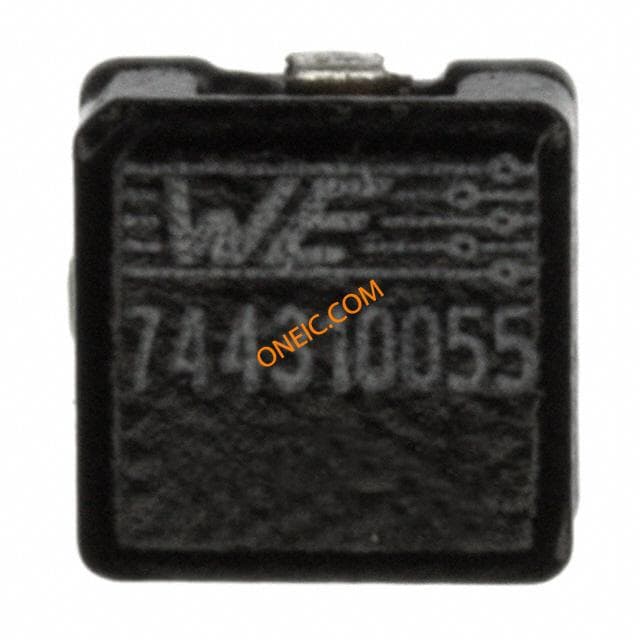

744310055
Wurth Electronics
Fixed Inductors WE-HCI Inductor 0.52uH 100kHz 14A INDUCTOR POWER .52UH 14A SMD Inductor SMD high current WE-HCI 0.52uH INDUCTOR, SMD, HIGH CURRENT 0.43UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 520 nH ±20%, 20A Idc

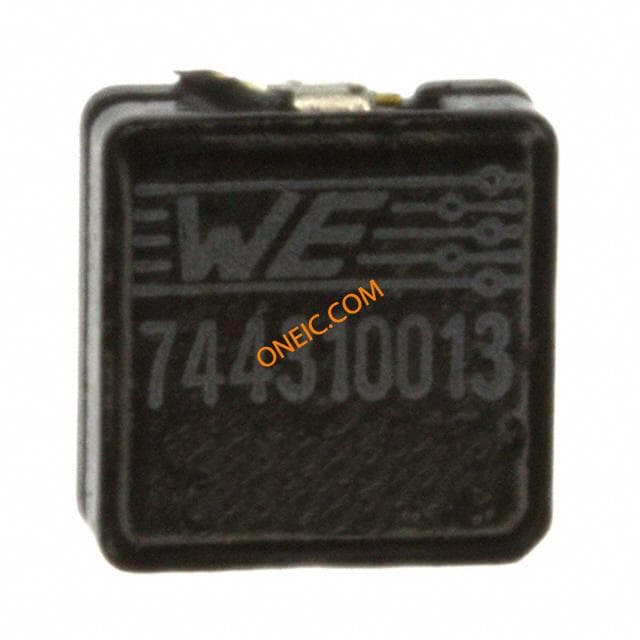

744310013
Wurth Electronics
Fixed Inductors WE-HCI Inductor 0.13uH 100kHz 22A INDUCTOR POWER .13UH 22A SMD Inductor SMD high current WE-HCI 0.13uH INDUCTOR, SMD, HIGH CURRENT 0.11UH
744314330
Wurth Electronics
固定インダクタ WE-HCI Inductor 3.3uH 100kHz 9A Power Choke Shielded Wirewound 3.3uH 20% 100KHz 9A 9mOhm DCR T/R INDUCTOR POWER 3.3UH 9.0A SMD Inductor SMD high current WE-HCI 3.3uH Fixed Inductors WE-HCI Inductor 3.3uH 100kHz 9A INDUCTOR, SMD, HIGH CURRENT 3.3UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 3.3 μH ±20%, 9A Idc

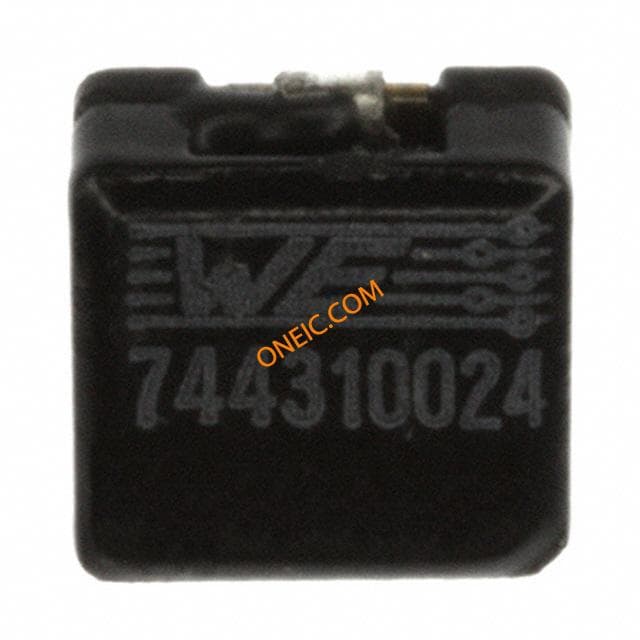

744310024
