MW22B-10-500
| Manufacturer | |
| Description | Precision Potentiometers 2W 500ohms 5% Pot;Wirewound;Rest 500 Ohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.25in POTENTIOMETER, 10 TURN 500 OHM 3W Pot;Wirewound;Rest500Ohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.25In |
| Category |
Business
| Product | Precision Potentiometer | Product Category | Precision Potentiometers |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85334010 |
Electrical
| Linearity | +/- 0.25 % | Tolerance | 5 % |
| Resistance | 500 Ohms | Element Type | Wirewound |
| Power - Rated | 2 W | Resistance Tolerance | :± 5% |
| DC Resistance (DCR) (Max) | :500ohm | ||
Mechanical
| Taper | :Linear | Length | :19.05mm |
| Weight | 0.022 | Packaging | Bulk |
| Termination | :Solder | Shaft Detail | Slotted |
| Mounting Type | :Panel | Terminal Type | :Solder |
| Mounting Style | Panel | Rotation Angle | :3600° |
| Shaft Diameter | 0.25 in | Termination Style | Solder Lug |
| Diameter - Outside | :22.35mm | Resistive Material | :Wirewound |
| Length - Shaft and Bearing | 0.82 in | ||
Product Info
| Series | MW22B | Adjustment Type | :Shaft |
| Number of Gangs | :1 | Number of Turns | 10 |
Environmental
| Operating Temperature | :105°C | Temperature Coefficient | :80ppm/°C |
| Temperature Coefficient (Typ) | :80ppm/°C | ||
Documents & Media
Similar Parts
MW22B-10-500
ETI Systems
Precision Potentiometers 2W 500ohms 5% Pot;Wirewound;Rest 500 Ohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.25in POTENTIOMETER, 10 TURN 500 OHM 3W Pot;Wirewound;Rest500Ohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.25In
536-1-1-503
Vishay / Spectrol
Precision Potentiometers 7/8 WW 50Kohms 10 Turns Pot;Wirewound;Rest 50 Kilohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.25in POT, WIREWOUND, 50KOHM, 5%, 2W Pot;Wirewound;Rest50Kilohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.25In Vishay 536 系列 10 转 50kΩ ±5% 精密 精密电位计 , 2W, 6.35 mm 直径轴, 20ppm/°C, 衬套安装

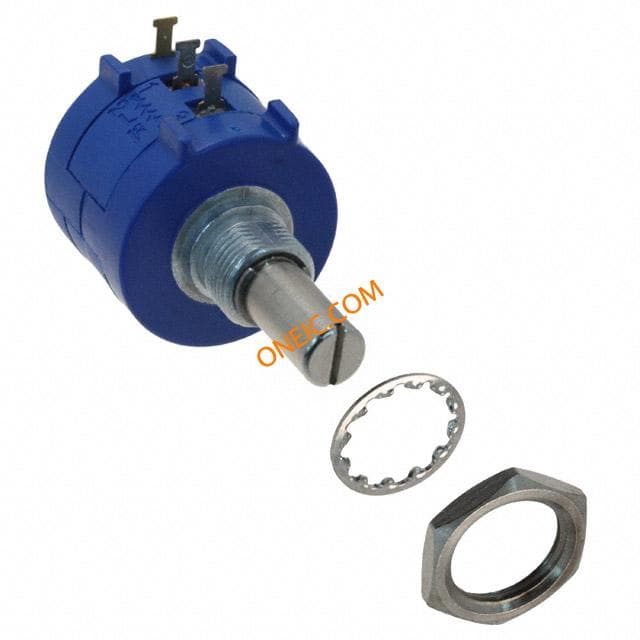

3590S-2-501L
