点击放大查看
534-1-1-503
| Manufacturer | |
| Description | Pot;Wirewound;Rest 50 Kilohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.2497in Pot;Wirewound;Res50Kilohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.2497In. Vishay 534 系列 10 转 50kΩ ±5% 精密电位计 , 2W, 6.34 mm 直径轴, 20ppm/°C, 衬套安装 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Linearity | ±0.25% | Tolerance | ±5% |
| Resistance | 50Kilohms | Resolution | 0.009% |
| Power - Rated | 2W | Dielectric Strength | 1000VAC |
| Frequency - Operating | 10 | Insulation Resistance | 1000Megohms(Min.)@500VDC |
| Resistance - Initial (Ri) (Min) | 50kΩ | ||
Mechanical
| Taper | Linear | Length | 39.67mm |
| Torque | 0.5Oz./in.(Section1),0.9Oz./in.(Section2) | Diameter | 22.22mm |
| Termination | SolderLug | Mounting Type | 衬套安装 |
| Thread Length | 30000ShaftRevolution | Mounting Style | Panel |
| Rotation Angle | 3600° | Terminal Style | 转台 |
| Diameter - Shaft | 0.2497" | Material - Blade | Wirewound |
| Size / Dimension | 0.875"Dia×0.75"L | Mounting Hole Diameter | 10.32mm |
Product Info
| Type | Potentiometer | Series | 534 |
| Function | Y | Number of Turns | 10 |
Environmental
| Switching Cycles | 1000000Revolutions | Operating Temperature | +125°C |
| Temperature Coefficient | ±20ppm/°C | Temperature Coefficient (Typ) | 20ppm/°C |
| Operating Temperature - Junction | +125°C | ||
Documents & Media
PDF Document
Similar Parts
MW22B-10-500
ETI Systems
Precision Potentiometers 2W 500ohms 5% Pot;Wirewound;Rest 500 Ohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.25in POTENTIOMETER, 10 TURN 500 OHM 3W Pot;Wirewound;Rest500Ohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.25In
$179.1718
Details
536-1-1-503
Vishay / Spectrol
Precision Potentiometers 7/8 WW 50Kohms 10 Turns Pot;Wirewound;Rest 50 Kilohms;Panel;10 Turns;Pwr-Rtg 2W;Shaft Dia 0.25in POT, WIREWOUND, 50KOHM, 5%, 2W Pot;Wirewound;Rest50Kilohms;Panel;10Turns;Pwr-Rtg2W;ShaftDia0.25In Vishay 536 系列 10 转 50kΩ ±5% 精密 精密电位计 , 2W, 6.35 mm 直径轴, 20ppm/°C, 衬套安装
$89.9640
Details

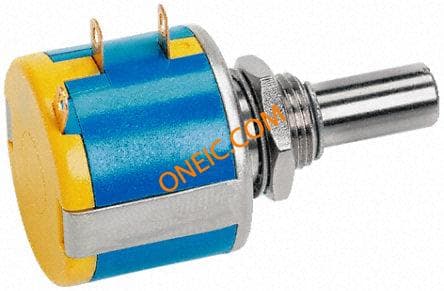

534B1503JLB
