570-002-000-200
| Manufacturer | |
| Description | CONN RCPT 2POS WATERPROOF 10AMP Jones Plugs & Sockets WATERPROOF INSULATRS CONNECTOR, HOUSING, RECEPTACLE, 2POS, 5.8MM CONNECTOR, RECPT, WIRE MOUNT, IP67, 2WAY Connector: wire-wire; 570; plug; female; PIN:2; IP67; Locking: lock |
| Category |
Business
| Product Category | Jones Plugs & Sockets | Standard Package | 250 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 300V | ||
Mechanical
| Pitch | 0.228" (5.80mm) | Weight | 0 |
| Packaging | Bulk | Contact Type | Female Socket |
| Pitch - Post | 5.8mm | Body Material | PBT |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | :Latch |
| Material - Body | :PBT (Polybutylene Terephthalate) | Package Quantity | 20 |
| Connector - Cable | plug | Contact Termination | Crimp |
| Number of Positions | 2 | Material - Insulation | silicone rubber |
Product Info
| Spg | 20 | Note | Contacts Not Provided |
| Gender | :Receptacle | Series | :570 Waterproof |
| Features | Waterproof | Product Type | Plug Connectors |
| Adapter Series | 570 | Number of Units | 1 |
| For Use With/Related Products | :570 Series Crimp Contacts | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
Similar Parts
565-280-210
EDAC
Crimpers HANDTOOL - CRIMPING TOOL, CRIMP, HAND, EDAC 565/570 Crimp Tool, 565-280-210, Edac EDAC 560 and 572 系列 Hand Crimping Tool 压接工具 , 适用于22 → 28 AWG 线规格

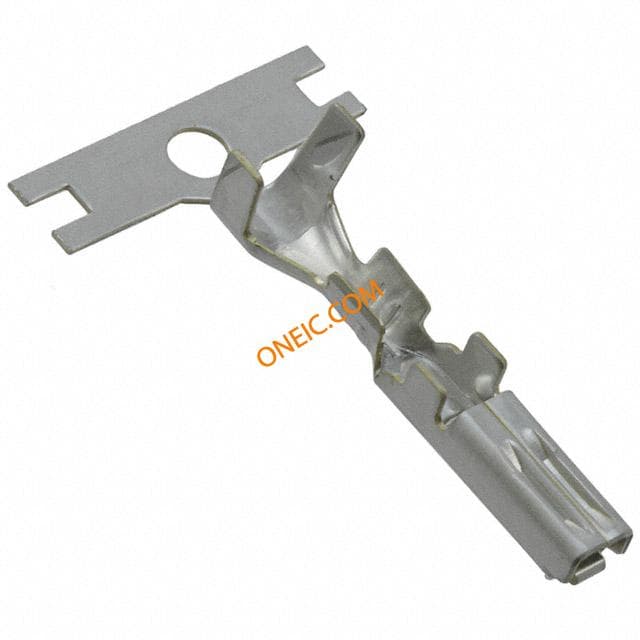

570-290-721
