570-290-721
| Manufacturer | |
| Description | Automotive Connectors 568/570 FEMALE CONT SMALL GAUGE 568/570 FEMALE CONT SMALL GAUGE CONTACT, CRIMP, SOCKET, 22-20AWG CONTACT, SOCKET, 22-20AWG, CRIMP Contact; female; 22÷28AWG; 570; tinned; crimped; for cable; 10A Crimp contact, 10 A, 570-290-721, Edac |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Terminals | Standard Package | 280 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Contact Resistance | 10mΩ | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Wire Gauge | 16-22 AWG | Contact Type | :- |
| Mounting Type | crimped | Pin or Socket | Socket |
| Connector Type | female | Contact Finish | Tin |
| Mounting Style | for cable | Contact Material | Brass |
| Package Quantity | 100 | Connector - Cable | contact |
| Termination Style | Crimp | 1st Contact Gender | :Socket |
| Contact Termination | Crimp | Number of Positions | 1 |
| Wire Gauge or Range - AWG | :22AWG | Contact Material - Plating | tinned |
Product Info
| Spg | 100 | Gender | Female |
| Series | :570 | Adapter Series | 570 |
| Number of Units | 1 | For Use With/Related Products | :570 Series Waterproof Female Housings |
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
565-280-210
EDAC
Crimpers HANDTOOL - CRIMPING TOOL, CRIMP, HAND, EDAC 565/570 Crimp Tool, 565-280-210, Edac EDAC 560 and 572 系列 Hand Crimping Tool 压接工具 , 适用于22 → 28 AWG 线规格
$6702.1344
Details

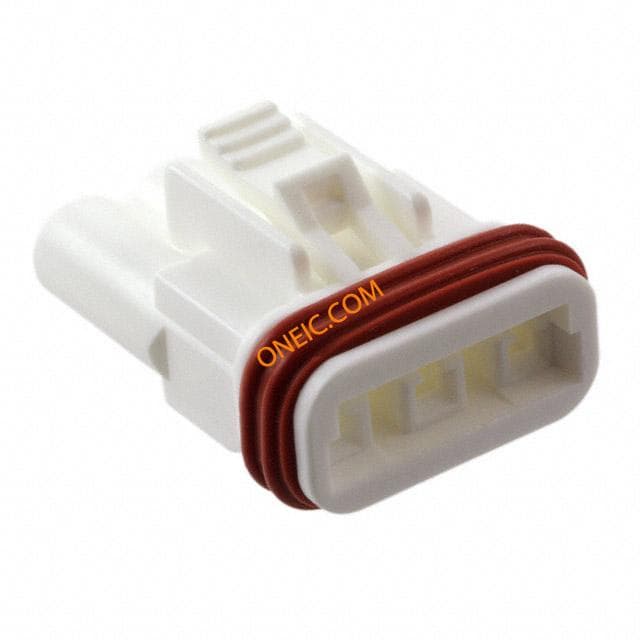

570-003-000-200
