570-290-761
| Manufacturer | |
| Description | Automotive Connectors FEMALE TERM 14 AWG 567/570 SERIES CONNECTORS MODULAR Terminal Female AWG 14 567/570 Series Crimp contact, 10 A, 570-290-761, Edac |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Standard Connectors | Standard Package | 280 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 300 V | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 10 A | ||
Mechanical
| Packaging | Tape & Reel (TR) | Wire Gauge | 14 AWG |
| Pin or Socket | Socket | Contact Finish | Brass |
| Mounting Style | Wire | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Crimp |
| Wire Gauge - Ends | 14 | Contact Termination | Crimp |
| Cross Section Shape | 2.00...2.00 mm² | Number of Positions | 1 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 14...14 AWG |
| Outside Pipe Diameter (Max) | 3.1 | ||
Product Info
| Series | 570 | Connection Method | Wire-Wire |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
Similar Parts

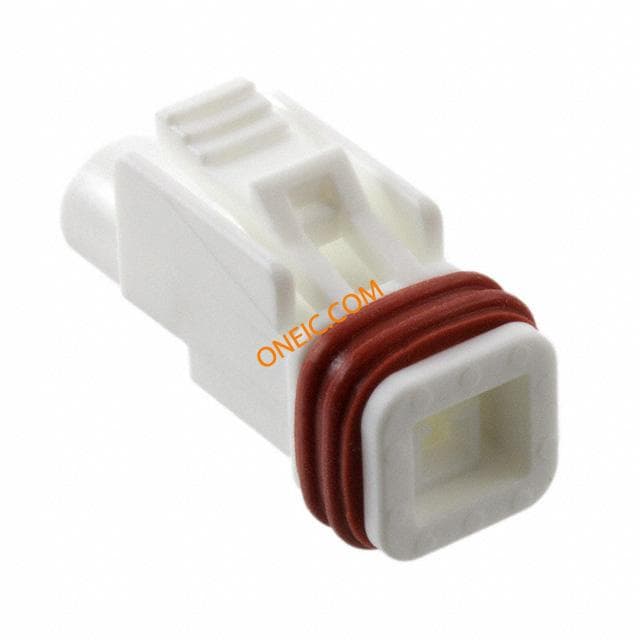

570-001-000-200
EDAC
Automotive Connectors HOUSING - WATERPROOF CONN RECPT 1POS WATERPROOF CONNECTOR, HOUSING, RECEPTACLE, 1POS, 10A
$17.1360
Details

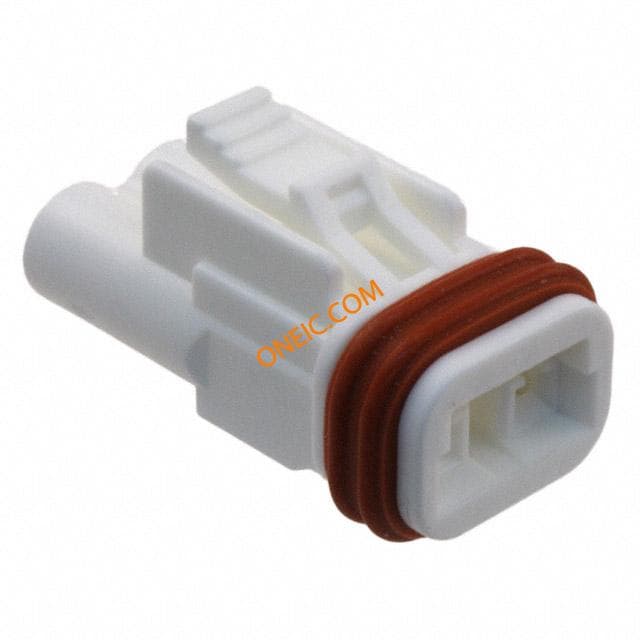

570-002-000-200
