565-290-721
| Manufacturer | |
| Description | CONN SOCKET 22-28AWG WATERPROOF Headers & Wire Housings SOCKET (22-28) AWG WATERPROOF CONTACT CONTACT, PIN, 28-22AWG, CRIMP Contact; female; 22÷28AWG; 565; tinned; crimped, on cable; 3A; 10mΩ Crimp contact 3 A Female 28...22 AWG, 565-290-721, Edac |
| Category |
Business
| Standard Package | 540 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 10mΩ | Current Rating (Max) | 3 A |
Mechanical
| Weight | 0 | Packaging | Tape & Reel (TR) |
| Wire Gauge | 22-28 AWG | Mounting Type | crimped, on cable |
| Pin or Socket | Socket | Connector Type | female |
| Contact Finish | Tin | Contact Material | Phosphor Bronze |
| Package Quantity | 100 | Connector - Cable | contact |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | :28AWG |
| Contact Material - Plating | tinned | ||
Product Info
| Spg | 100 | Series | 565 |
| Product Type | Contacts | Adapter Series | 565 |
| Number of Units | 1 | For Use With/Related Products | :565 Series Waterproof Male Housings |
Documents & Media
Similar Parts

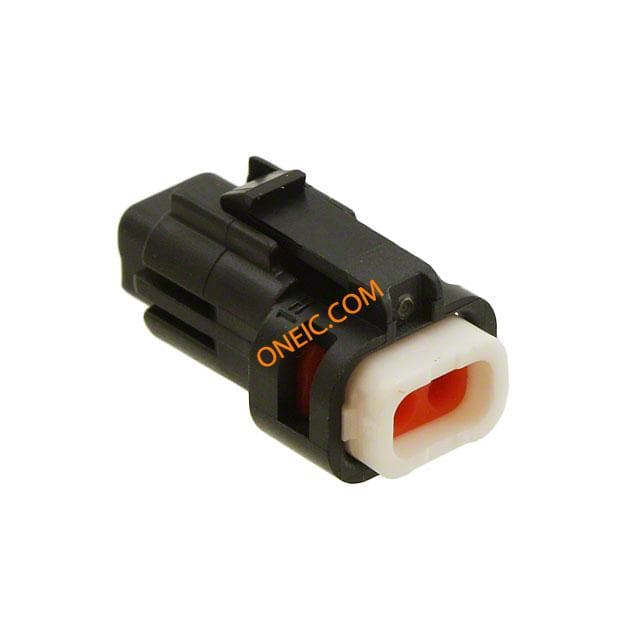

565-002-000-411
EDAC
Pin & Socket Connectors 2WAY 3A RCPT (20-22) WATERPROOF HSNG BLK CONN RECEPT 2WAY BLACK 22-28AWG CONNECTOR, HOUSING, RECEPTACLE, 2POS, 2.5MM
565-003-000-411
EDAC
Pin & Socket Connectors 3P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 3POS WATERPROOF
565-005-000-411
EDAC
Pin & Socket Connectors 5P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 5POS WATERPROOF
565-003-000-410
EDAC Inc
CONN RCPT 3 WAY BLACK 22-28AWG Headers & Wire Housings 3WAY 3A RCPT (22-28) WATERPROOF HSNG BLK Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount CONNECTOR, HOUSING, RECEPTACLE, 3POS Connector: wire-wire; 565; plug; female; PIN:3; IP67; Locking: lock

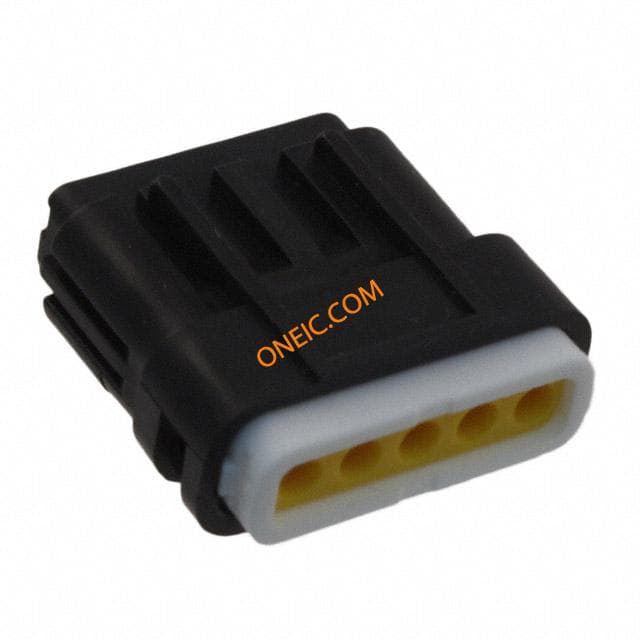

565-005-000-410
EDAC Inc
CONN RCPT 5 WAY BLACK 22-28AWG Pin & Socket Connectors 5WAY 3A RCPT (28-22) WATERPROOF HSNG BLK CONNECTOR, HOUSING, RECEPTACLE, 5POS, 2.5MM Connector: wire-wire; 565; plug; female; PIN:5; IP67; Locking: lock

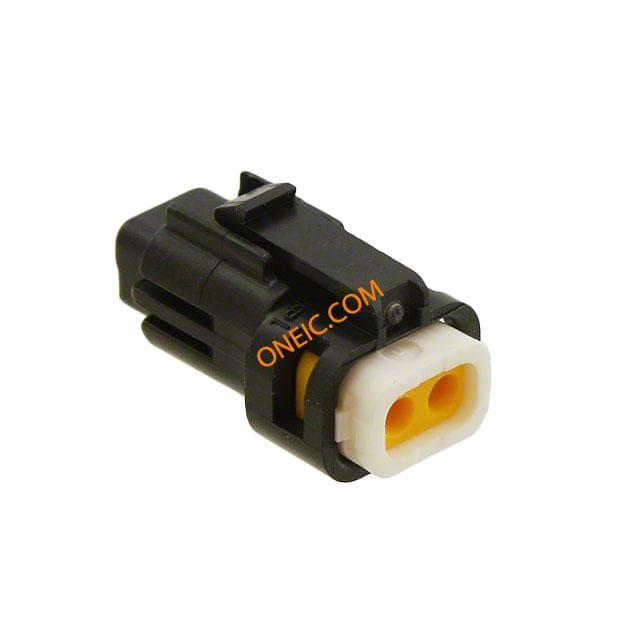

565-002-000-410
