565-002-000-410
| Manufacturer | |
| Description | CONN RECEPT 2WAY BLACK 22-28AWG Pin & Socket Connectors 2WAY 3A RCPT (22-28) WATERPROOF HSNG BLK CONNECTOR, HOUSING, RECEPTACLE, 2POS Connector: wire-wire; 565; plug; female; PIN:2; IP67; Locking: lock |
| Category |
Business
| Other Names | 151-1159 | Standard Package | 250 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Test | 100V | Current Rating (Max) | 3 A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Pitch | :2.5mm |
| Width | 9.1mm | Weight | 0 |
| Packaging | Bulk | Contact Type | Female Socket |
| Body Material | PBT | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 1 | Locking Feature | lock |
| Contact Material | Phosphor Bronze | Housing Material | Polybutylene Terephthalate (PBT) |
| Package Quantity | 25 | Connector - Cable | plug |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Material - Insulation | silicone rubber |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Receptacle | Series | 565 |
| Features | Waterproof | Product Type | Receptacle Housings |
| Adapter Series | 565 | Number of Units | 1 |
| For Use With/Related Products | :565 Series Crimp Contacts | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
Similar Parts

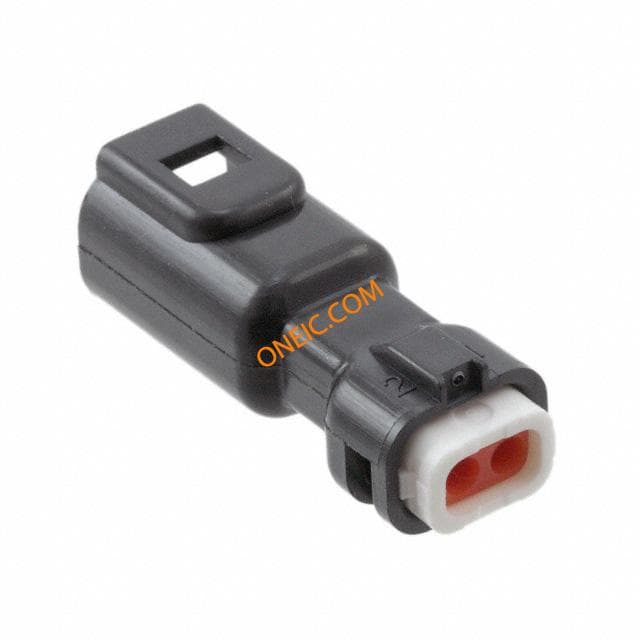

565-002-000-311
EDAC
Pin & Socket Connectors 2WAY 3A PLUG (20-22) WATERPROOF HSNG BLK CONN PLUG 2WAY BLACK 22-28AWG CONNECTOR, HOUSING, PLUG, 2POS, 2.5MM

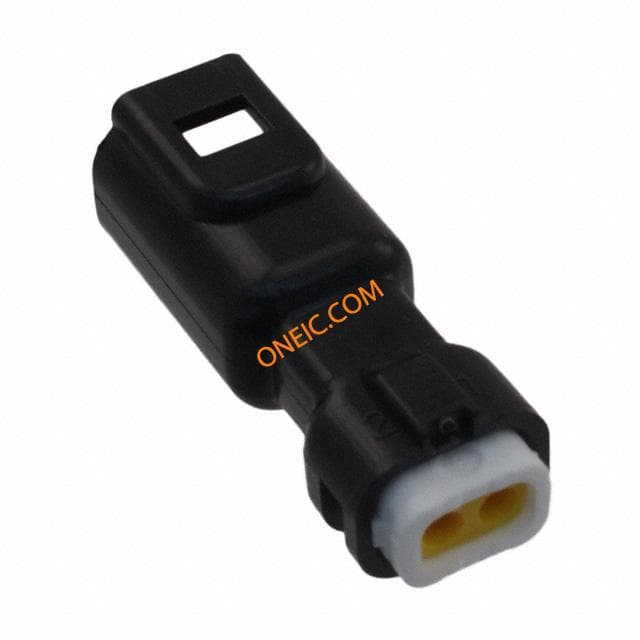

565-002-000-310
