565-005-000-310
| Manufacturer | |
| Description | CONN PLUG 5 WAY BLACK 22-28AWG Pin & Socket Connectors 5WAY 3A PLUG (28-22) WATERPROOF HSNG BLK CONNECTOR, HOUSING, PLUG, 5POS, 2.5MM Connector: wire-wire; 565; plug; male; PIN:5; IP67; Locking: lock |
| Category |
Business
| Standard Package | 250 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Test | 100V | Current Rating (Max) | 3 A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Pitch | 0.098" (2.50mm) |
| Width | 16.6mm | Weight | 0 |
| Packaging | Bulk | Contact Type | Male Pin |
| Body Material | PBT | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | lock |
| Contact Material | Polybutylene | Package Quantity | 25 |
| Connector - Cable | plug | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 5 |
| Material - Insulation | silicone rubber | Wire Gauge or Range - AWG | 28-22 |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Plug | Series | 565 |
| Features | Waterproof | Product Type | Plug Housings |
| Adapter Series | 565 | Number of Units | 1 |
| For Use With/Related Products | :565 Series Crimp Contacts | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
Similar Parts
565-005-000-411
EDAC
Pin & Socket Connectors 5P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 5POS WATERPROOF

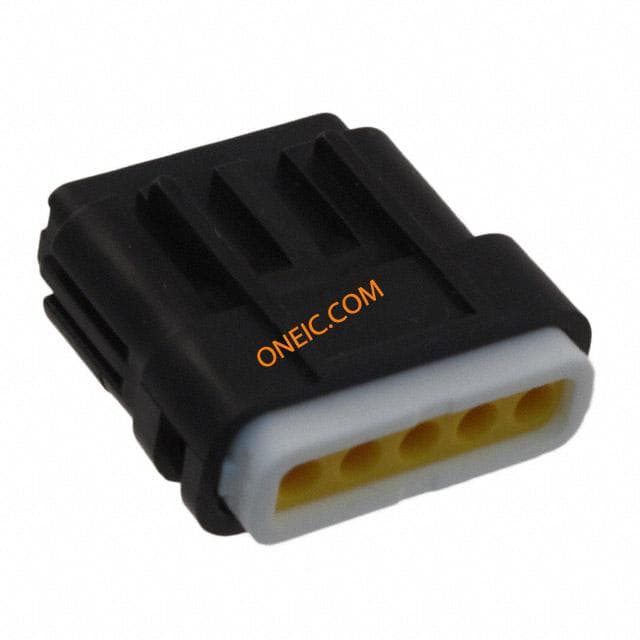

565-005-000-410
EDAC Inc
CONN RCPT 5 WAY BLACK 22-28AWG Pin & Socket Connectors 5WAY 3A RCPT (28-22) WATERPROOF HSNG BLK CONNECTOR, HOUSING, RECEPTACLE, 5POS, 2.5MM Connector: wire-wire; 565; plug; female; PIN:5; IP67; Locking: lock
565-200-100
EDAC Inc
CONNECTORS MODULAR Pin & Socket Connectors WIRE SEAL HOLE COVER WATERPROOFING CAP Waterproofing Cap white, 565-200-100, Edac EDAC 565 系列 防水盖, 使用于防水连接器

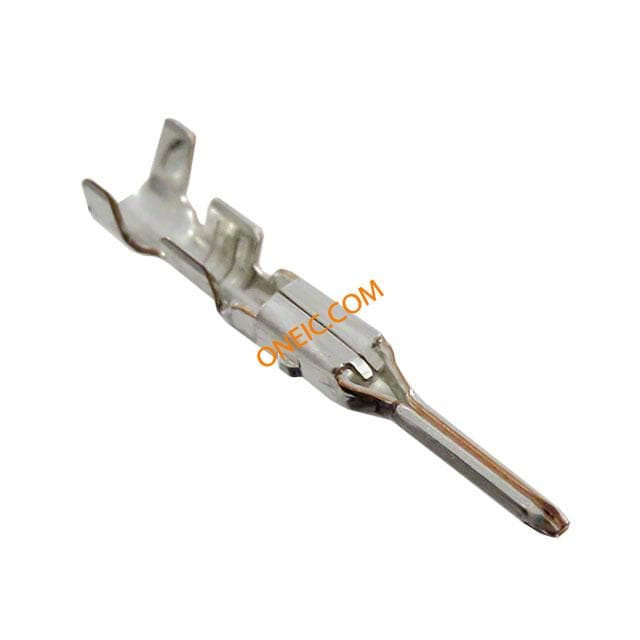

565-290-711
