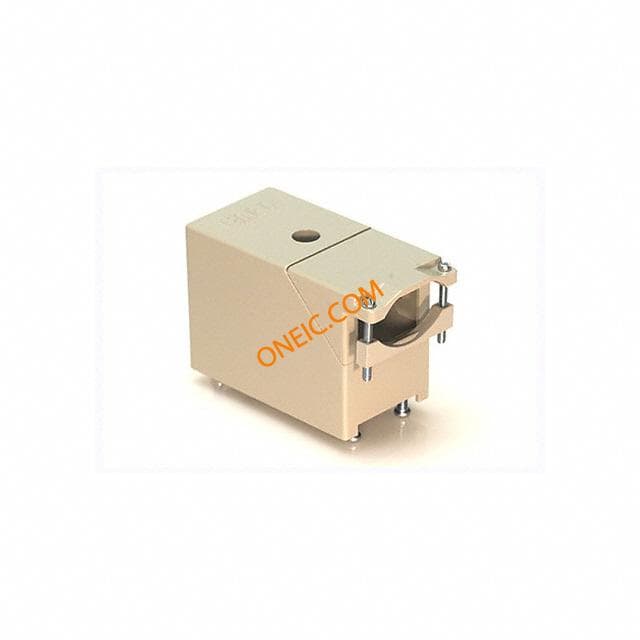

516-230-512
| Manufacturer | |
| Description | COVER METAL RACK & PANEL 120POS Standard EDAC 516 Metal Hood 120 Way Rack & Panel Connectors 120P METAL COVER Connector Accessories 120 POS Side Entry Clamp Cover Zinc Die Cast SIDE ENTRY COVER, SIZE 12, METAL COVER, METAL, 120 WAY Enclosure: for 516 series; 516; PIN:120; Mat: zinc alloy Metal cover, 516-230-512, Edac EDAC 516 系列 电源连接器 |
| Category |
Business
| Product Category | Rack & Panel Connectors | Standard Package | 25 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | ||
Mechanical
| Weight | 0.227 | Cable Exit | :90° |
| Body Material | zinc alloy | Connector Style | Rack and Panel |
| Material - Body | :Zinc | Housing Material | Zinc |
| Package Quantity | 22 | Termination Style | Screw |
| Number of Contacts | 120 | Number of Positions | 120 |
| Shell Size - Insert | :12 | Supplier Device Package | for 516 series |
| Exterior Housing Material | :Metal | ||
Product Info
| Spg | 22 | Series | 516 |
| Product Type | Receptacle Housing | Accessory Type | Backshell |
| Adapter Series | 516 | Specifications | Metal, 120 Positions |
| Number of Units | 1 | For Use With/Related Products | 516 Series |
Environmental
| Operating Temperature | -65...125°C | ||
Documents & Media
Similar Parts
516-230-512
EDAC Inc
COVER METAL RACK & PANEL 120POS Standard EDAC 516 Metal Hood 120 Way Rack & Panel Connectors 120P METAL COVER Connector Accessories 120 POS Side Entry Clamp Cover Zinc Die Cast SIDE ENTRY COVER, SIZE 12, METAL COVER, METAL, 120 WAY Enclosure: for 516 series; 516; PIN:120; Mat: zinc alloy Metal cover, 516-230-512, Edac EDAC 516 系列 电源连接器

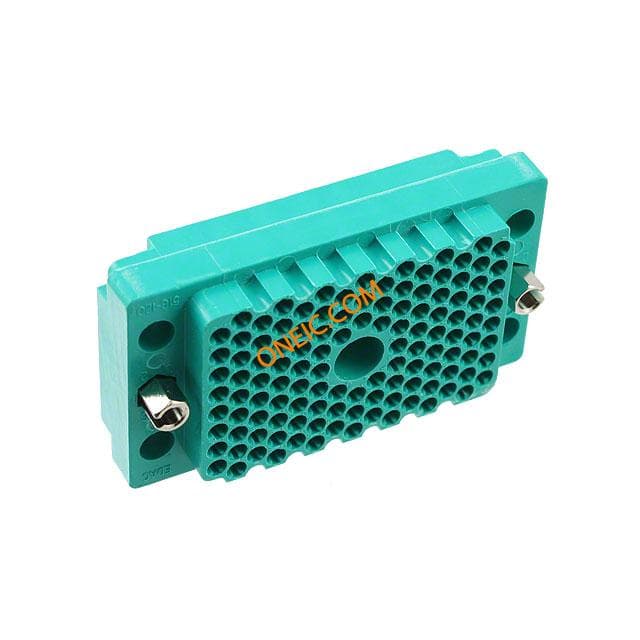

516-120-000-202
