516-120-000-202
| Manufacturer | |
| Description | CONN RACK & PANL RCPT 120POS Rack & Panel Connectors 120P RECEPTACLE WITH NUT Conn Rack and Panel RCP 120 POS Crimp ST Panel Mount RACK & PANEL CONNECTOR, RECEPTACLE, 120POS Panel receptacle housing Pitch3.81 mm / 6.6 mm Poles 120 for panel mount / For hermaphroditic contacts 516, 516-120-000-202, Edac |
| Category |
Business
| Other Names | 151-1043 | Product Category | Rack & Panel Connectors |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Mechanical
| Color | Green | Pitch | 0.150" (3.81mm) |
| Weight | 0.05 | Packaging | Bulk |
| Weight (g): | 57.20000 | Mounting Type | Varies by Contact |
| Connector Type | Housing for Non Gendered Contacts | Contact Finish | Gold |
| Number of Rows | 17 | Connector Style | Rack and Panel |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze Alloy |
| Housing Material | Diallyl Phthalate (DAP) | Termination Style | Screw |
| 1st Contact Gender | :- | Number of Contacts | 120 |
| Contact Termination | :- | Number of Positions | 120 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Gender | :Receptacle |
| Series | 516 | Features | Jackscrew Socket, Mating Guide |
| Product Type | Receptacle Connectors | ||
Documents & Media
Similar Parts
516-230-512
EDAC Inc
COVER METAL RACK & PANEL 120POS Standard EDAC 516 Metal Hood 120 Way Rack & Panel Connectors 120P METAL COVER Connector Accessories 120 POS Side Entry Clamp Cover Zinc Die Cast SIDE ENTRY COVER, SIZE 12, METAL COVER, METAL, 120 WAY Enclosure: for 516 series; 516; PIN:120; Mat: zinc alloy Metal cover, 516-230-512, Edac EDAC 516 系列 电源连接器
516-290-590
EDAC Inc
CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-520
EDAC Inc
CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A
516-290-500
EDAC Inc
CONTACT RACK & PANEL SOLDER EYE Std EDAC516 solder tag terminal,8.5A Rack & Panel Connectors CONTACT SOLDER EYELET Contact SKT Solder Lug ST Cable Mount CONTACT, SOLDER, PHOSPHOR BRONZE CONTACT, EYELET PK100 Contact; hermaphrodite; 516; nickel plated, gold plated; in bulk EDAC 焊片, 镀金镀镍 磷铜触芯
516-290-541
EDAC Inc
CONTACT RACK & PANEL WIREWRAP Std EDAC516 wire wrap terminal,8.5A Rack & Panel Connectors CONTACT WIREWRAP Contact SKT Wire Wrap ST Cable Mount CONTACT, WIRE WRAP, PHOSPHOR BRONZE CONTACT, MINIWRAP, PK100 EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-591
EDAC Inc
CONN CRIMP CONTACT Rack & Panel Connectors Crimp Contacts CONTACT, PIN, 28-18AWG, CRIMP Crimp contact 18...28 AWG, 516-290-591, Edac
516-290-540
EDAC Inc
CONN CONTACT SHORT WIRE WRAP Rack & Panel Connectors 516 SHORT CONTACT WIRE WRAP
516-290-542
EDAC Inc
CONN CONTACT LONG WIRE WRAP Rack & Panel Connectors METAL COVER SE Contact SKT Wire Wrap ST Cable Mount

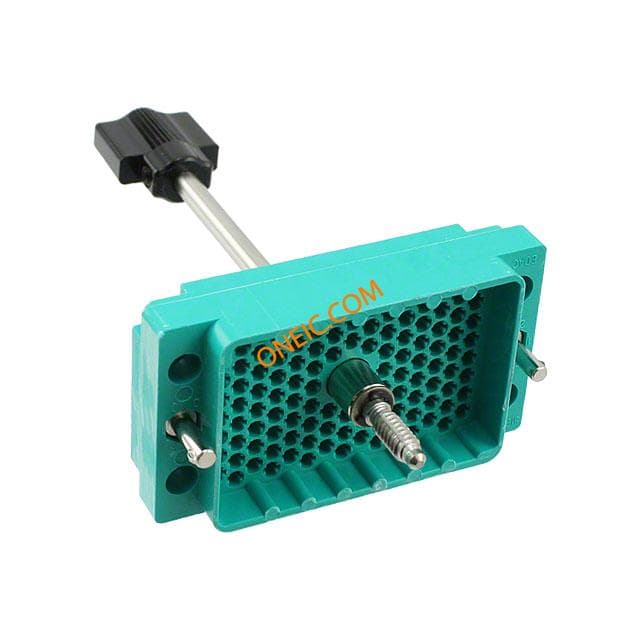

516-120-000-101
