SA3348/1
| Manufacturer | |
| Description | Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格 |
| Category |
Business
| Product Category | Standard Circular Contacts | Standard Package | 1 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 50 V | Current Rating (Max) | 5 A |
| Connector - Voltage Input | 4pin connectors, 6pin connectors, 8pin connectors | ||
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Wire Gauge | 22-26 AWG | Mounting Type | soldering |
| Pin or Socket | Pin | Connector Type | male |
| Contact Finish | Gold | Contact Material | Copper Alloy |
| Package Quantity | 10 | Connector - Cable | contact |
| 1st Contact Gender | Pin (Male) | Contact Termination | Solder Cup |
| Wire Gauge or Range - AWG | :26AWG | Contact Material - Plating | gold plated |
Product Info
| Spg | 10 | Series | Buccaneer 400 |
| Adapter Series | Buccaneer 400 | Number of Units | 1 |
| For Use With/Related Products | :Buccaneer 400 Series Circular Connectors | ||
Documents & Media
Similar Parts
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
13027/1
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERTION FOR 5A CONT RED Insertion tool for 5A contacts Insertion/Extraction Tool 3, 9,12 And 25 Pole Crimp Contacts INSERTION/ EXTRACTION TOOL TIP, 12 POLE Insertion/ExtractionTool,CableSupport;25WayContacts;Buccaneer Tool: for demounting of terminals; for PX0794/95 connectors Assembly/disassembly tool for contacts SA3348/3347, 13027/1, Bulgin Bulgin 400 系列 插入工具
14025/5AMP
Bulgin
Crimpers POSITIONER 5A RED TOOL CRIMP POSITIONER FOR 5A Tool; Positioner; 12 pole Connector Accessories Positioner 5A Red 12 POS POSITIONER, 22-26AWG Tool,Positioner,12pole Limit stop for contacts SA3348/3347, 14025/5AMP, Bulgin
PX0412/08P
Bulgin
Standard Circular Connector 8 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 8POS PIN 8 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 8 POS Crimp ST Panel Mount 8 Terminal 1 Port PLUG, CHASSIS MOUNT, 8WAY Connector;Plug;8;22to26AWG;CrimpandSolder;5A;125VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:8; w/o terminals; IP68; 125V appliance plug Buccaneer 400, 8-pole 8, PX0412/08P, Bulgin Bulgin Buccaneer 系列 8路 面板安装 直向 连接器 , 公触点

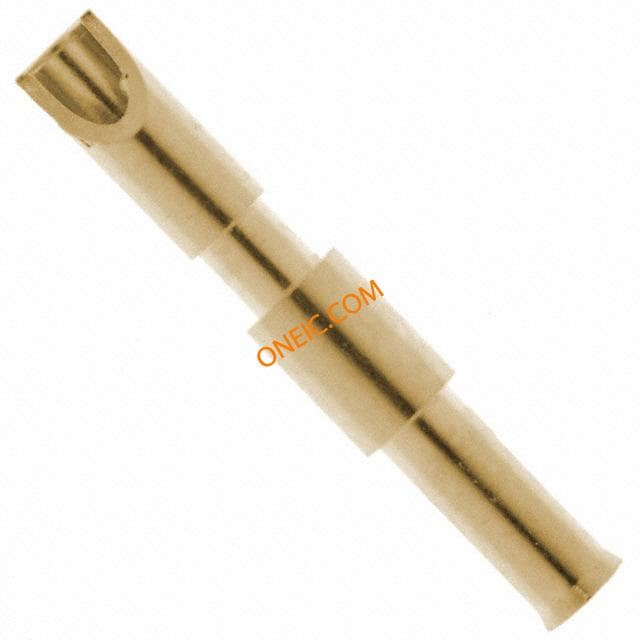

SA3347/1
