PX0795/P
| Manufacturer | |
| Description | Standard Circular Connector 12 POLE IN-LINE PLUG CRIMP/SOLDER CONN HSNG RCPT 12POS INLINE PIN 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port PLUG, INLINE, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL, VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Weight | 0.01929 | Packaging | Bulk |
| Wire Gauge | 22-26 | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp, Solder |
| Contact Type | Crimp and Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold over Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | GlassFilledPolyamide |
| Primary Material | Sealed | Termination Style | Crimp / Solder |
| 1st Contact Gender | Male | Color - Connectors | :Black |
| Number of Contacts | 12 | Dielectric Material | Polyamide |
| Number of Positions | 12 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide, Glass Filled | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :8.1mm | ||
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Product Type | Connectors | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0794/S
Bulgin
Standard Circular Connector 12 POLE FLEX SKT CRIMP/SOLDER CONN HSNG PLUG 12POS CABLE SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port SOCKET, FREE, 12WAY CONN HSNG PLUG 12POS INLINE SKT Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
.JPG&w=3840&q=75)
SA3348/1
Bulgin
Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖

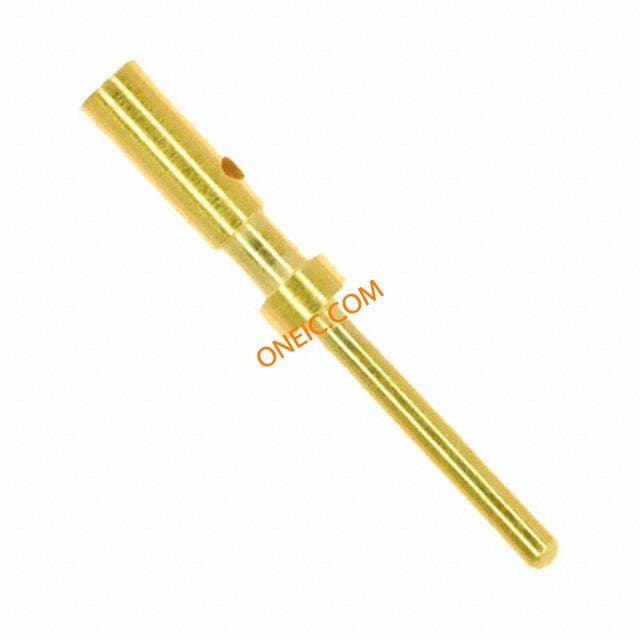

SA3348
