PX0834/B
| Manufacturer | |
| Description | Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG CONN MOD PLUG 8P8C SHIELDED Buccaneer IP68Cat5e RJ45 cable connector Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e SEALED ETHERNET, PLUG, RJ45, 8WAY, CABLE CAT5E ETHERNET COUPLER, PLUG, 8WAY CABLE Connector;RJ-45;77.5mm;38.1mm;Cablesfrom3.5to8mmDia. Plug; RJ45; Buccaneer Ethernet; PIN:8; Contacts: phosphor bronze Cable socket with RJ45 plug 8, PX0834/B, Bulgin Bulgin 直 公 RJ45 连接器 , Cat5e, 屏蔽, 电缆安装型 |
| Category |
Business
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Impedance | :100ohm | Voltage Rating | :30V |
| Voltage - Working | :30V | Current Rating (Max) | 1.5 A |
Mechanical
| Color | Translucent - Clear | Length | 3.051" (77.50mm) |
| Weight | 0.05 | Packaging | Bulk |
| Shielding | Shielded | Cable Type | Round Cable, Stranded Wires |
| Wire Gauge | 24/26 | Orientation | Straight |
| Shell Style | Plastic | Size - Body | Ø38.1 x 77.5mm |
| Termination | IDC | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Cable Diameter | 3.5-8mm |
| Connector Type | :Industrial Ethernet | Contact Finish | Gold |
| Mounting Style | Cable | Locking Feature | threaded joint, internal thread |
| Contact Material | Phosphor Bronze | Housing Material | Polyester/Polyurethane |
| Package Quantity | 50 | Primary Material | Ethernet |
| Connector - Cable | plug | Number of Contacts | :8 |
| Contact Termination | :- | Number of Positions | 8 |
| Plating - Thickness | 50µm | Contact Material - Plating | gold plated |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 50 | Type | CablePlug |
| Gender | Male | Series | Buccaneer |
| Features | Circular Threaded Coupling | USOC Codes | RJ45 |
| Adapter Series | Buccaneer Ethernet | Number of Ports | 1 |
| Number of Units | 1 | Performance Category | Cat 5e |
| Application Specifics | Commercial | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Environmental
| Ratings | Cat5e | Mating Cycles | :1000 |
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | :70°C | ||
Documents & Media
Similar Parts

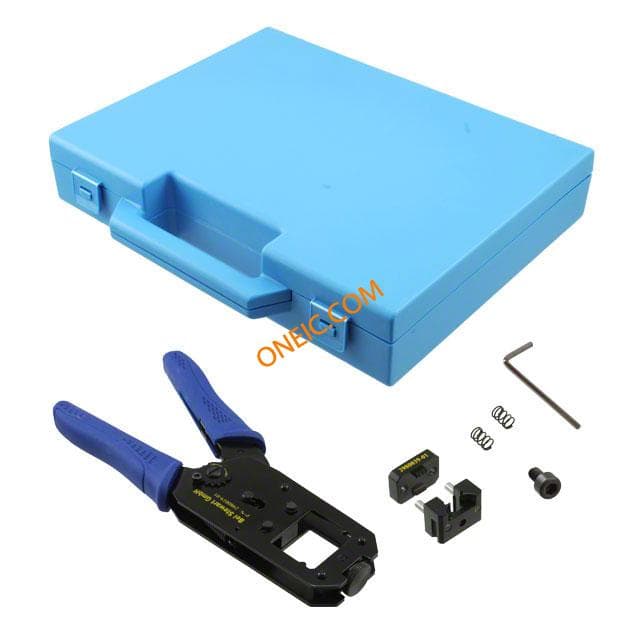

14151
Bulgin
Hand Tools HAND CRIMP TOOL & DIE SET EARTHNET TOOL HAND CRIMPER & DIE SET
PX0834/B
Bulgin
Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG CONN MOD PLUG 8P8C SHIELDED Buccaneer IP68Cat5e RJ45 cable connector Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e SEALED ETHERNET, PLUG, RJ45, 8WAY, CABLE CAT5E ETHERNET COUPLER, PLUG, 8WAY CABLE Connector;RJ-45;77.5mm;38.1mm;Cablesfrom3.5to8mmDia. Plug; RJ45; Buccaneer Ethernet; PIN:8; Contacts: phosphor bronze Cable socket with RJ45 plug 8, PX0834/B, Bulgin Bulgin 直 公 RJ45 连接器 , Cat5e, 屏蔽, 电缆安装型
PX0835
Bulgin
CONN CAP SEAL FOR PX0846/PX0851 Sealing cap for cable connector Modular Connectors / Ethernet Connectors SEALING CAP Connector Accessories USB Sealing Cap CAP, BUCCANEER, RJ45 Cap,Sealing;FitsflexconnectorsPX0830-832,PX0834,PX0836-838;Buccaneer Protection cover; IP68; threaded joint Protective cap, PX0835, Bulgin Bulgin IP68 防尘盖

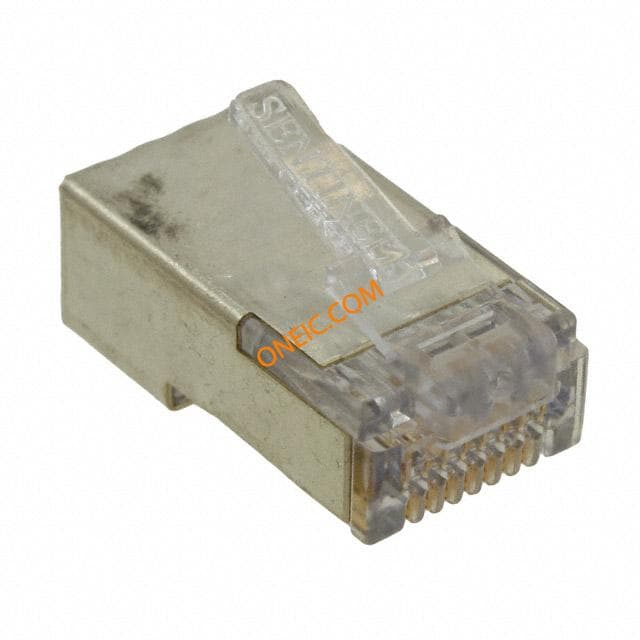

14150
