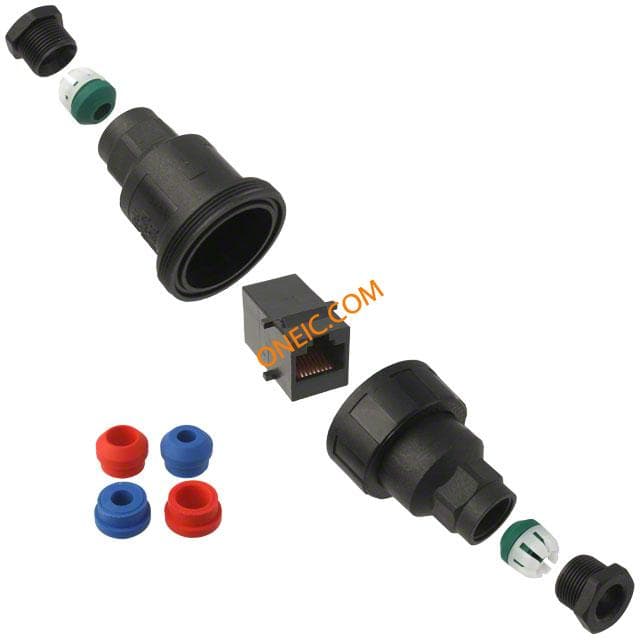

PX0777/UTP
| Manufacturer | |
| Description | CABLE JOINER 8POS UTP UNSHIELDED COUPLER MODULAR 8POS-8POS Buccaneer in-line conn. Cat 5 UTP IP68 Connector Accessories Cable Joiner For Sealed In-Line RJ45 Connections CONNECTOR, ETHERNET, IN-LINE, UTP CableJoiner;Unshielded;GlassFilledPolyamide;105mm(Max.);38.1mm;IP68 Cable joint; RJ45 socket, both sides; Buccaneer Ethernet; IP68 电缆安装 RJ45 连接器, Cat5 |
| Category |
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Compliant | Tariff No | 85444290 |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | :30V | Voltage - Supply | :UL94V-0 |
| Current Rating (Max) | :1.5A | Connector - Voltage Input | unshielded |
Mechanical
| Color | Black | Depth | 38.1mm |
| Length | 105mm | Weight | 0.048 |
| Material | :Glass Filled Polyamide | Shielding | Unshielded |
| Shell Style | Plastic | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 3.5-8mm |
| Connector Type | :Ethernet | Contact Finish | Gold |
| Contact Material | Phosphor Bronze | Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Package Quantity | 20 | Primary Material | Ethernet |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Number of Contacts | :8 | Contact Termination | :Cable |
| Shell Material, Finish | Polyamide, Glass Filled | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8mm |
Product Info
| Spg | 20 | Type | Coupler |
| Features | Circular Threaded Coupling | Adapter Series | Buccaneer Ethernet |
| Number of Units | 1 | Other Specifications | cable joint |
| Application Specifics | Commercial | Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 70°C | ||
