点击放大查看
PX0820/S
| Manufacturer | |
| Description | Standard Circular Connector 25 POLE FLEX SKT CONN HSNG PLUG 25POS CABLE SKT 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port SOCKET, SEALED FREE, 25WAY CONN HSNG PLUG 25POS INLINE SKT Connector,StandardBuccaneer;Socket;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 1A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :65mm | Weight | 0.026 |
| Packaging | Bulk | Wire Gauge | 24-26 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp, Solder | Contact Type | Crimp and Solder Cup |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 7-9mm | Connector Type | Plug for Female Contacts |
| Contact Finish | Gold over Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Copper Alloy |
| Housing Material | GlassFilledPolyamide | Primary Material | Sealed |
| Termination Style | Crimp / Solder | 1st Contact Gender | Female |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Mating Orientation | Threaded | Number of Contacts | 25 |
| Dielectric Material | Polyamide | Number of Positions | 25 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :9mm |
Product Info
| Note | Contacts Not Provided | Type | CableSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0821/P
Bulgin
Standard Circular Connector 25 POLE IN-LINE PLG CRIMP/SOLDER CONN HSNG RCPT 25POS INLINE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED, INLINE, 25WAY CableConnector,In-Line;25;Plug;7to9mmDia;In-LineFlex;1A;50V Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点
SA3179
Bulgin
Standard Circular Contacts CRIMP SKT 12P 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A CRMP 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Crimp,Wire size 28 to 24AWG CRIMP SOCKET, PK10 Contacts,Standard,Buccaneer,25-Way,CrimpSockets Crimp contact, female, for 10 and 12-pole, SA3179, Bulgin Bulgin 400 系列 1A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
PX0822/P
Bulgin
Standard Circular Connector 25 POLE CHAS MT PLG CONN HSNG RCPT JAM NUT 25POS PIN 25 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Panel Mount 25 Terminal 1 Port PLUG, SEALED PANEL, 25WAY Connector;Pin;25;Crimp/Solder;IP68;ULListed,CSACertified,VDEApproved Bulgin Buccaneer 系列 25路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

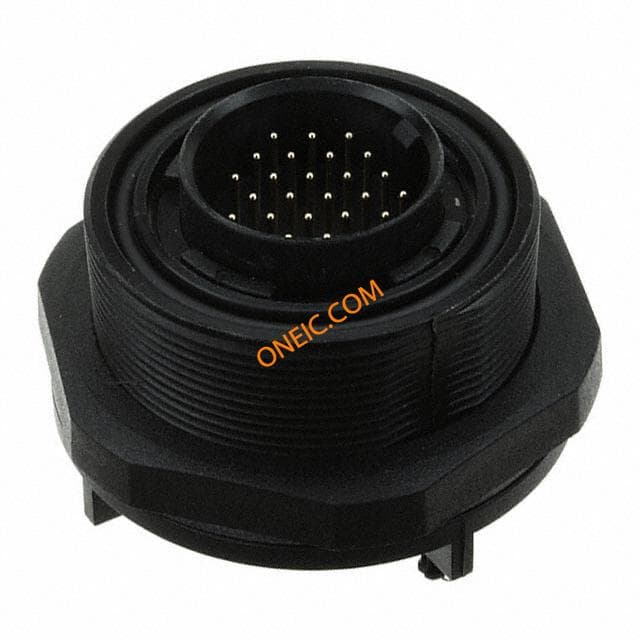

PX0707/P/25
