SA3179/1
| Manufacturer | |
| Description | Standard Circular Contacts 157-SA3179/1 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A SLD 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Solder,Wire size 28 to 24AWG Contact SKT Solder ST Cable Mount CONTACT, SOCKET, 26-24 AWG, SOLDER Contacts,Standard,Buccaneer,25-Way,SolderSockets Contact; female; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 10 and 12-pole, SA3179/1, Bulgin Bulgin 400 系列 1A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格 |
| Category |
Business
| Product Category | Standard Circular Contacts | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Contact Resistance | 5mΩ |
| Current Rating (Max) | 1A | Connector - Voltage Input | 10pin connectors, 12pin connectors |
Mechanical
| Weight | 0.002 | Packaging | Bulk |
| Wire Gauge | 24-28 AWG | Termination | Solder |
| Mounting Type | Cable Mount | Pin or Socket | Socket |
| Connector Type | female | Contact Finish | Gold |
| Contact Material | Copper Alloy | Package Quantity | 10 |
| Connector - Cable | contact | 1st Contact Gender | Socket (Female) |
| Contact Termination | Solder Cup | Wire Gauge or Range - AWG | :26AWG |
| Contact Material - Plating | gold plated | ||
Product Info
| Spg | 10 | Gender | Female |
| Series | 400 | Adapter Series | Buccaneer 400 |
| Number of Units | 1 | For Use With/Related Products | :Buccaneer |
Environmental
| Ingress Protection | IP 68 | Operating Temperature | +80°C |
Documents & Media
Similar Parts
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
13027
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERT/EXTRACT Insertion tool for 1A contacts Insertion/Extraction Tool 3, 9,12 And 25 Pole Crimp Contacts INSERTION TOOL, 24-28AWG Tool,Assembly;25 Bulgin 400 系列 插入工具

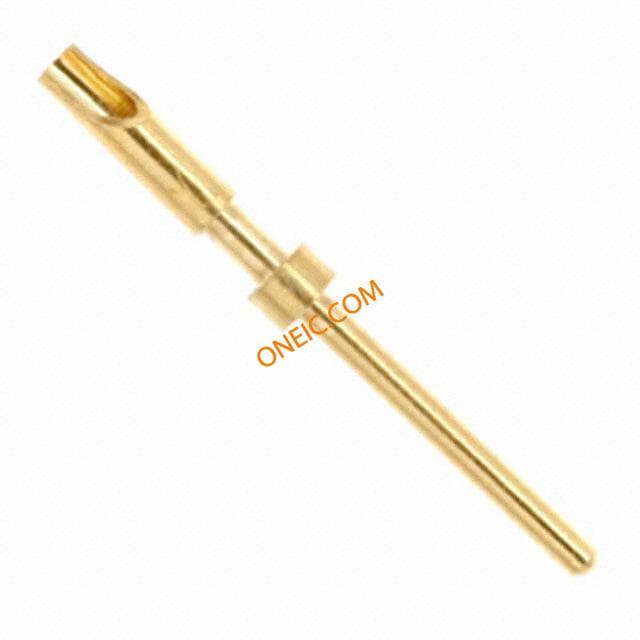

SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格

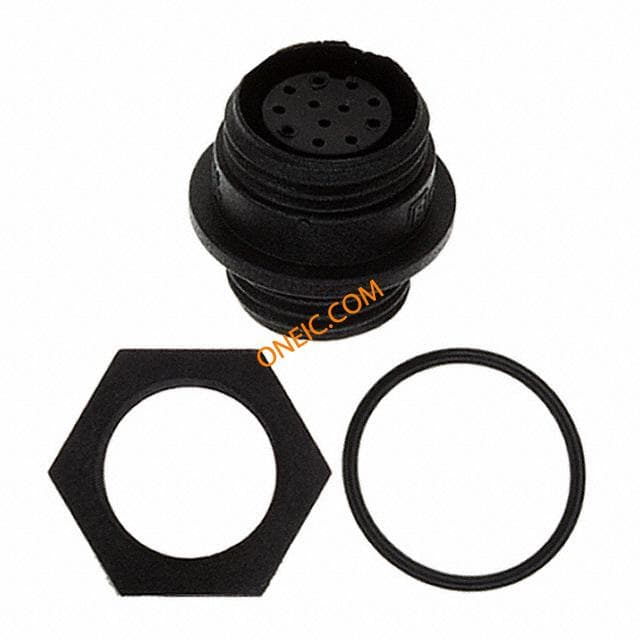

PX0412/12S
Bulgin
Standard Circular Connector 12 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 12POS SKT 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp ST Panel Mount 12 Terminal 1 Port SOCKET, CHASSIS, 12WAY Connector;Socket;12;24to28AWG;CrimpandSolder;1A;50VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:12; w/o terminals; IP68 appliance socket Buccaneer 400, 12-pole 12, PX0412/12S, Bulgin Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 母触点
PX0410/10S/6570
Bulgin
Standard Circular Connector 10 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 10POS SKT Conn Buccaneer SKT 10 POS Crimp ST Cable Mount 10 Terminal 1 Port

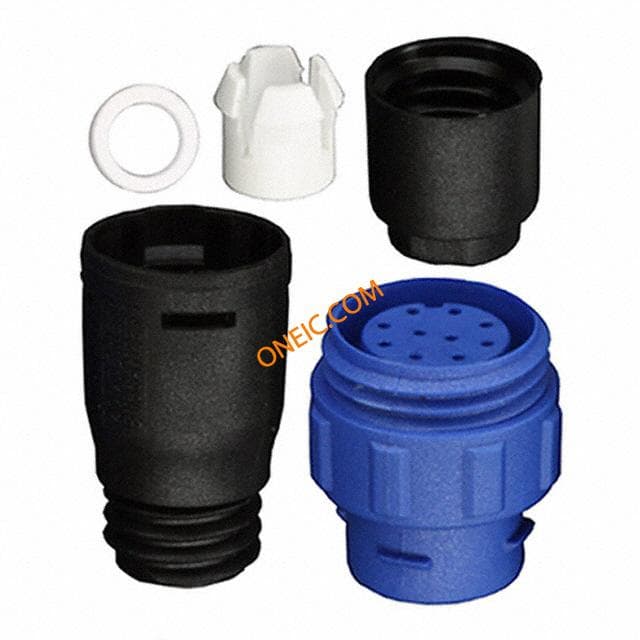

PX0411/10S/6065
