PX0820/P
| Manufacturer | |
| Description | Standard Circular Connector 25 POLE FLEX PLUG CONN HSNG PLUG 25POS CABLE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED FREE, 25WAY CIRCULAR CONNECTOR, PLUG, 25POS, CABLE CONN HSNG PLUG 25POS INLINE PIN Connector,StandardBuccaneer;Pin;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 1A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :65mm | Weight | 0.026 |
| Packaging | Bulk | Wire Gauge | 24-26 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp, Solder | Contact Type | Crimp and Solder Cup |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Gold |
| Angle of Throw | Straight | Cable Diameter | 7-9mm |
| Connector Type | Plug for Male Contacts | Contact Finish | Gold over Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Material - Body | :Glass Filled Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | GlassFilledPolyamide |
| Primary Material | Sealed | Termination Style | Crimp / Solder |
| 1st Contact Gender | Male | Color - Connectors | :Black |
| Diameter - Outside | :38.1mm | Mating Orientation | Threaded |
| Number of Contacts | 25 | Contact Termination | :Crimp / Solder |
| Dielectric Material | Polyamide | Number of Positions | 25 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :9mm |
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

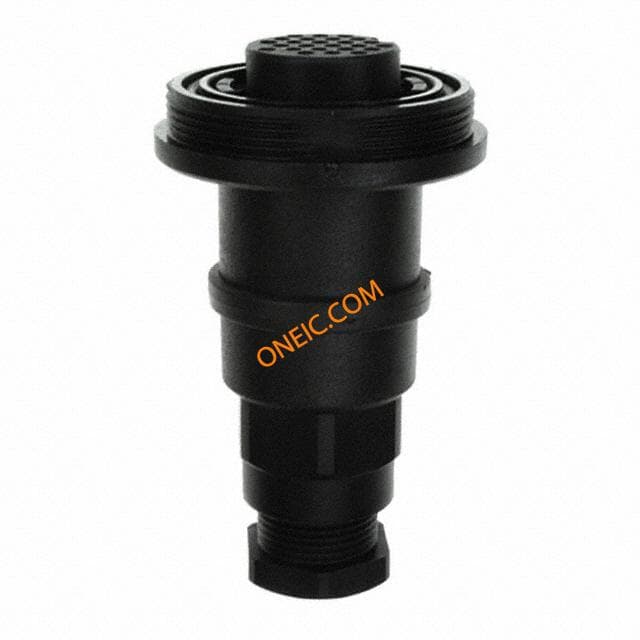

PX0821/S
Bulgin
Standard Circular Connector 25 POLE IN-LINE SKT CRIMP/SOLDER CONN HSNG RCPT 25POS INLINE SKT 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port SOCKET, SEALED, INLINE, 25WAY CableConnector,In-Line;25;Socket;7to9mmDia;In-LineFlex;1A;50V Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 母触点
PX0820/P
Bulgin
Standard Circular Connector 25 POLE FLEX PLUG CONN HSNG PLUG 25POS CABLE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED FREE, 25WAY CIRCULAR CONNECTOR, PLUG, 25POS, CABLE CONN HSNG PLUG 25POS INLINE PIN Connector,StandardBuccaneer;Pin;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列
SA3180
Bulgin
Standard Circular Contacts CRIMP PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A CRMP 24-28AWG 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 28 to 24AWG Contact PIN Crimp ST Cable Mount CRIMP PIN, PK10 Contacts,Standard,Buccaneer,25-Way,Crimp Contact; male; 24÷28AWG; Buccaneer 400; gold plated; crimped; 1A Crimp contact, male, for 10 and 12-pole, SA3180, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格

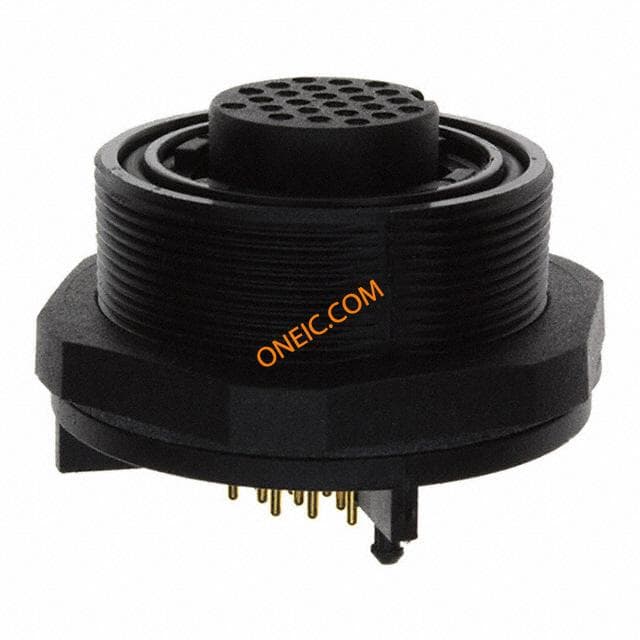

PX0707/S/25
