SA3180
| Manufacturer | |
| Description | Standard Circular Contacts CRIMP PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A CRMP 24-28AWG 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 28 to 24AWG Contact PIN Crimp ST Cable Mount CRIMP PIN, PK10 Contacts,Standard,Buccaneer,25-Way,Crimp Contact; male; 24÷28AWG; Buccaneer 400; gold plated; crimped; 1A Crimp contact, male, for 10 and 12-pole, SA3180, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格 |
| Category |
Business
| Other Names | 708-1090 | Product Category | Standard Circular Contacts |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 50 V | Contact Resistance | 5mΩ |
| Current Rating (Max) | 1 A | Connector - Voltage Input | 10pin connectors, 12pin connectors |
Mechanical
| Weight | 0.002 | Packaging | Bulk |
| Wire Gauge | 24-28 AWG | Termination | Crimp |
| Mounting Type | crimped | Pin or Socket | Pin |
| Connector Type | male | Contact Finish | Gold |
| Contact Material | Copper Alloy | Package Quantity | 100 |
| Connector - Cable | contact | 1st Contact Gender | Pin (Male) |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | :28AWG |
| Wire Gauge or Range - mm2 | :0.25mm² | Contact Material - Plating | gold plated |
| Diameter - Outside, Non-Expanded | :0.51mm | ||
Product Info
| Spg | 100 | Gender | Male |
| Series | 400 | Adapter Series | Buccaneer 400 |
| Number of Units | 10 | For Use With/Related Products | :Buccaneer 400 Series Circular Connectors |
Environmental
| Ingress Protection | IP 68 | Operating Temperature | 80°C |
Documents & Media
Similar Parts
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
13027
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERT/EXTRACT Insertion tool for 1A contacts Insertion/Extraction Tool 3, 9,12 And 25 Pole Crimp Contacts INSERTION TOOL, 24-28AWG Tool,Assembly;25 Bulgin 400 系列 插入工具
13170
Bulgin
Crimpers CRIMP TOOL 25 WAY TOOL HAND 25POS CRIMP Tool,Crimp;25;InsertingandExtracting25WayContacts
14025/1AMP
Bulgin
Crimpers POSITIONER 1A GREEN TOOL CRIMP POSITIONER FOR 1A Connector Accessories Positioner 1A Green POSITIONER, FOR 1A CONTACT Positioner;1Acrimptool;IP68 Limit stop for contacts SA3180/3179, 14025/1AMP, Bulgin
SA3179
Bulgin
Standard Circular Contacts CRIMP SKT 12P 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A CRMP 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Crimp,Wire size 28 to 24AWG CRIMP SOCKET, PK10 Contacts,Standard,Buccaneer,25-Way,CrimpSockets Crimp contact, female, for 10 and 12-pole, SA3179, Bulgin Bulgin 400 系列 1A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格

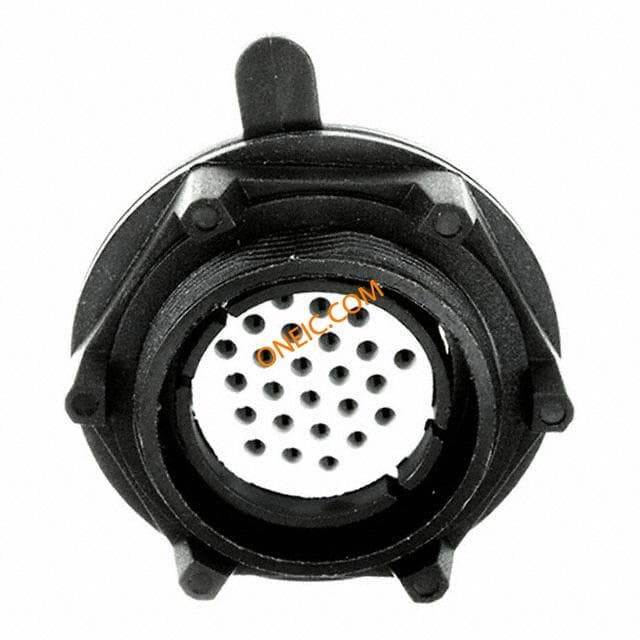

PX0822/P
Bulgin
Standard Circular Connector 25 POLE CHAS MT PLG CONN HSNG RCPT JAM NUT 25POS PIN 25 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Panel Mount 25 Terminal 1 Port PLUG, SEALED PANEL, 25WAY Connector;Pin;25;Crimp/Solder;IP68;ULListed,CSACertified,VDEApproved Bulgin Buccaneer 系列 25路 面板安装 直向 连接器 , 公触点

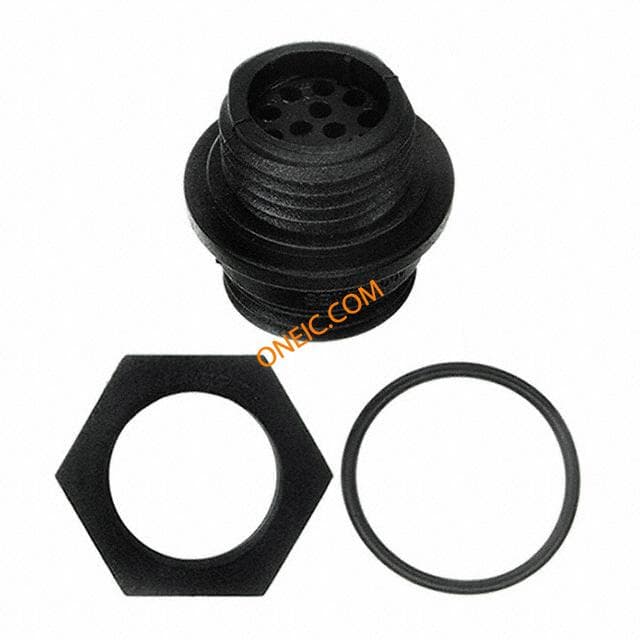

PX0412/12P
