PX0769/P
| Manufacturer | |

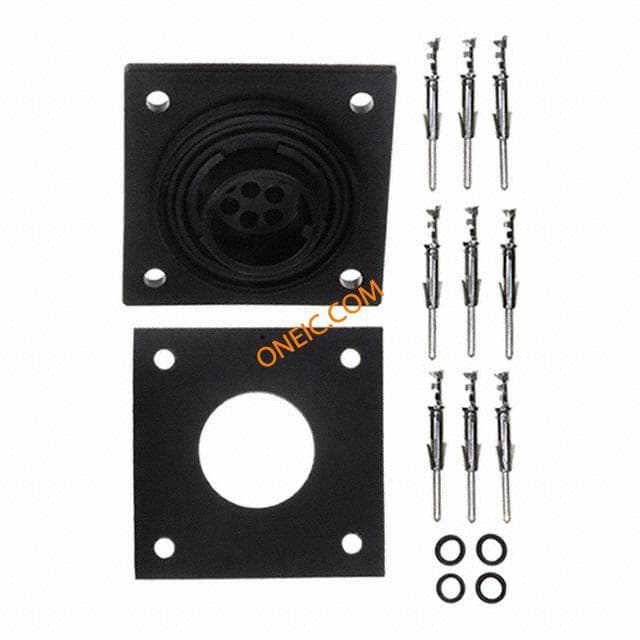

| Description | Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 150 V | Voltage - Working | :150V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5 A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Weight | 0.028 | Material | :Glass Filled Nylon |
| Packaging | Bulk | Wire Gauge | :25AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp | Contact Type | Pin |
| Mounting Type | Panel Mount, Flange | Angle of Throw | Straight |
| Cable Diameter | 6-8mm | Connector Type | Receptacle, Male Pins |
| Contact Finish | Tin | Fastening Type | Threaded |
| Mounting Style | Flange | Insertion Angle | :- |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Copper Alloy |
| Housing Material | Polyamide | Primary Material | Sealed |
| Termination Style | Screw | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Mating Orientation | Threaded |
| Number of Contacts | 9 | Panel Cutout Shape | :20.2mm |
| Contact Termination | :Crimp | Dielectric Material | Polyamide |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Mounting Hole Diameter | 3.8mm | Shell Material, Finish | Polyamide, Glass Filled |
| Mounting Panel Thickness | :33.3mm | Wire Gauge or Range - AWG | :24AWG |
| 1st Connector Mounting Type | :Panel | Diameter - Outside, Non-Expanded | :8.1mm |
Product Info
| Type | PanelPlug | Gender | :Plug |
| Series | Buccaneer | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
PX0769/P
Bulgin
Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0728/S
Bulgin

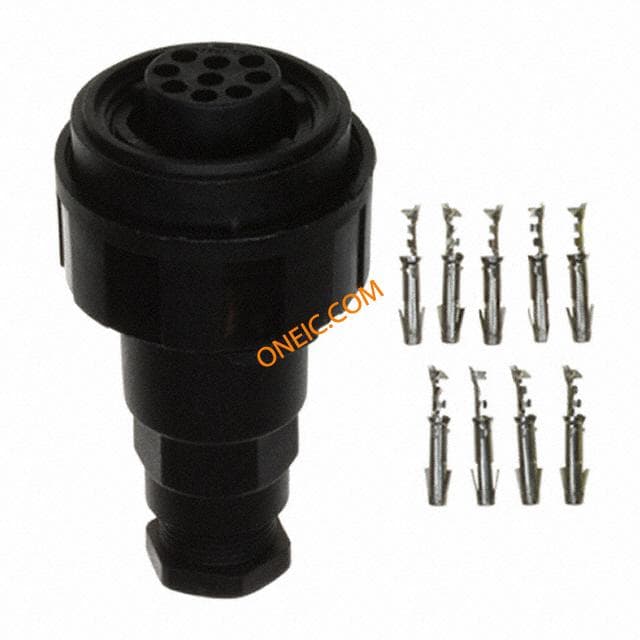

Standard Circular Connector 9 POLE FLEX SKT CONN PLUG 9POS CABLE SKT 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port SOCKET, SEALED FREE, 9WAY CONN PLUG 9POS INLINE SKT Connector,StandardBuccaneer;Socket;9;69.0mm;38.1mm;3.5to9mm;5A Cable socket, 9-pin 9, PX0728/S, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 母触点
