点击放大查看
PX0728/S
| Manufacturer | |
| Description | Standard Circular Connector 9 POLE FLEX SKT CONN PLUG 9POS CABLE SKT 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port SOCKET, SEALED FREE, 9WAY CONN PLUG 9POS INLINE SKT Connector,StandardBuccaneer;Socket;9;69.0mm;38.1mm;3.5to9mm;5A Cable socket, 9-pin 9, PX0728/S, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | ULRecognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 150VAC/DC | Voltage - Working | :150V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :65mm | Weight | 0.032 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| Wire Gauge | :25AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Tin | Angle of Throw | Straight |
| Cable Diameter | 6-8mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Tin | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Copper Alloy |
| Housing Material | GlassFilledPolyamide | Primary Material | Sealed |
| Termination Style | Crimp | 1st Contact Gender | Female |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Mating Orientation | Threaded | Number of Contacts | 9 |
| Contact Termination | :Crimp | Dielectric Material | Polyamide |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide, Glass Filled | Wire Gauge or Range - AWG | :24AWG |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8.1mm |
Product Info
| Type | CableSocket | Gender | :Socket |
| Series | Buccaneer | Features | ScrewLocking |
| Product Type | Connectors | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
PX0769/P
Bulgin
Standard Circular Connector 9 POLE FLANGE PLUG LOW PROFILE CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Flange Mount 9 Terminal 1 Port PLUG, LOW PROFILE, 9 POLE Connector;Pin;9;SuppliedFitted;Crimp;5A;150VAC/VDC;10Megohms(Max.) Panel Mount Plug Standard Buccaneer® with flange 9, PX0769/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0727/P
Bulgin
Standard Circular Connector 9 POLE CHAS MT PLUG CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port PLUG, SEALED PANEL, 9WAY Connector;Pin;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Panel-mount male receptacle, 9-pin 9, PX0727/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0729/P
Bulgin
Standard Circular Connector 9 POLE IN-LINE PLUG CRIMP CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CONN RCPT 9POS INLINE PIN CableConnector,In-Line;9;Plug;6to8mmDia;In-LineFlex;Crimp;5A Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 公触点
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

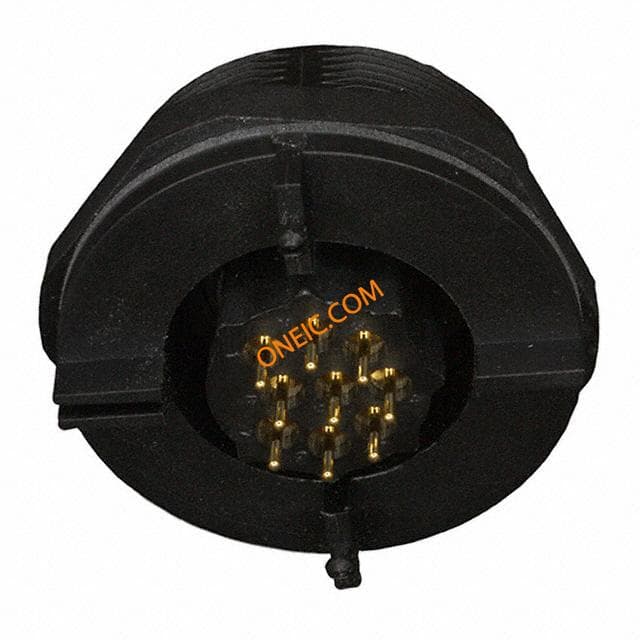

PX0707/P/09
