PX0727/P
| Manufacturer | |
| Description | Standard Circular Connector 9 POLE CHAS MT PLUG CONN RCPT 9POS PNL MNT PIN 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port PLUG, SEALED PANEL, 9WAY Connector;Pin;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Panel-mount male receptacle, 9-pin 9, PX0727/P, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 150VAC/DC | Voltage - Working | :150V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :32mm | Weight | 0.022 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| Wire Gauge | :25AWG | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Contact Type | Pin | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 6-8mm | Connector Type | Receptacle, Male Pins |
| Contact Finish | Tin | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :- |
| Material - Body | :Glass Filled Nylon (Polyamide) | Panel Thickness | :6.4mm |
| Contact Material | Copper Alloy | Housing Material | GlassFilledPolyamide |
| Primary Material | Sealed | Termination Style | Crimp |
| 1st Contact Gender | Male | Color - Connectors | :Black |
| Diameter - Outside | :37.1mm | Mating Orientation | Threaded |
| Number of Contacts | 9 | Contact Termination | :Crimp |
| Dielectric Material | Polyamide | Number of Positions | 9 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| Wire Gauge or Range - AWG | :24AWG | 1st Connector Mounting Type | :Panel |
| Diameter - Outside, Non-Expanded | :8.1mm | ||
Product Info
| Type | PanelPlug | Gender | :Plug |
| Series | Buccaneer | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具

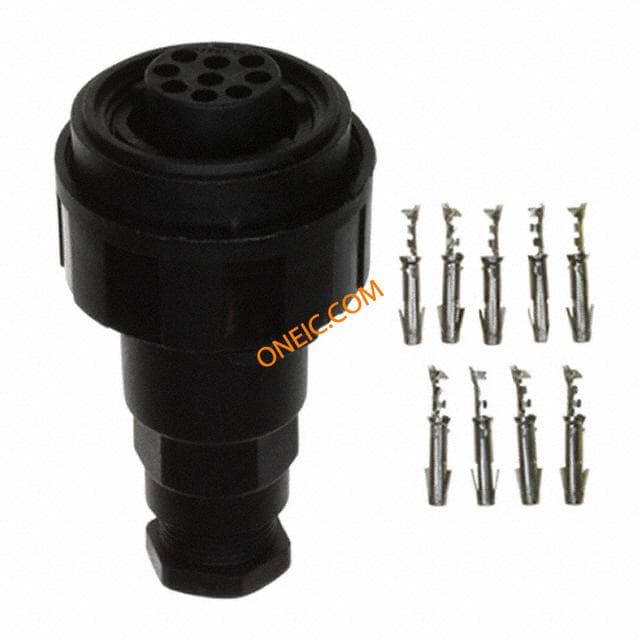

PX0728/S
