PX0727/S
| Manufacturer | |
| Description | Standard Circular Connector 9 POLE CHAS MT SKT CONN RCPT 9POS PNL MNT SKT 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port SOCKET, SEALED PANEL, 9WAY Connector;Socket;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Connector: circular; socket; female; PIN:9; Buccaneer Standard Device bushing Buccaneer, 9-pin 9, PX0727/S, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 插座 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 150VAC/DC | Voltage - Working | :150V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :28mm | Weight | 0.018 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| Wire Gauge | :25AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp |
| Contact Type | Socket | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 6-8mm | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Tin | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :- |
| Locking Feature | screwed, external thread | Material - Body | :Glass Filled Nylon (Polyamide) |
| Panel Thickness | :6.4mm | Contact Material | Copper Alloy |
| Housing Material | GlassFilledPolyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | socket |
| Termination Style | Crimp | 1st Contact Gender | Female |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Mating Orientation | Threaded | Number of Contacts | 9 |
| Contact Termination | :Crimp | Dielectric Material | Polyamide |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide, Glass Filled | Wire Gauge or Range - AWG | :24AWG |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Panel |
| Diameter - Outside, Non-Expanded | :8.1mm | ||
Product Info
| Spg | 25 | Type | PanelSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Product Type | Connectors | Adapter Series | Buccaneer Standard |
| Number of Units | 1 | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0727/S
Bulgin
Standard Circular Connector 9 POLE CHAS MT SKT CONN RCPT 9POS PNL MNT SKT 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port SOCKET, SEALED PANEL, 9WAY Connector;Socket;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Connector: circular; socket; female; PIN:9; Buccaneer Standard Device bushing Buccaneer, 9-pin 9, PX0727/S, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 插座
12855
Bulgin
Standard Circular Connector PVC BOOT FOR PNL MNT TYPES PVC INSULATION BOOT Cable Boots PVC BOOT FOR PNL MNT TYPES Connector Accessories Straight Insulation Boot Polyvinyl Chloride Boot;PVC;33.3mm;ULListed;PanelmountingtypeUsedWith Protective cap, 12855, Bulgin Bulgin Standard Buccaneer 系列 PCB 针座PVC 绝缘罩
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
.JPG&w=3840&q=75)

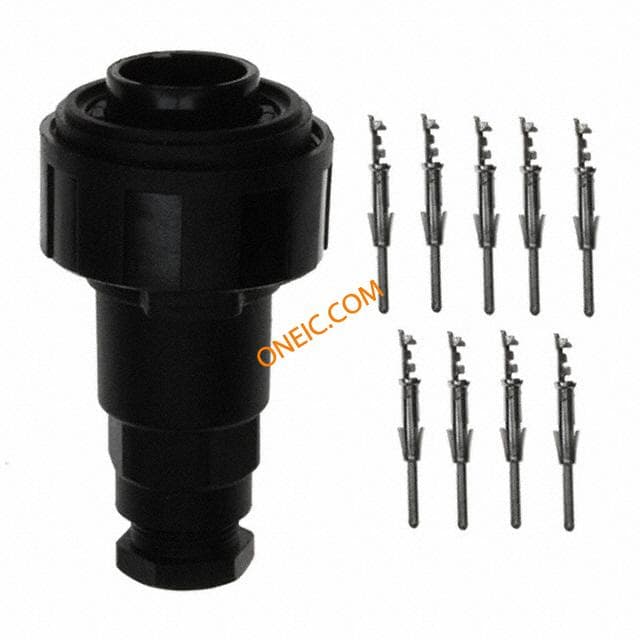

PX0728/P
