PX0728/P
| Manufacturer | |
| Description | Standard Circular Connector 9 POLE FLEX PLUG CONN PLUG 9POS CABLE PIN 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port PLUG, SEALED FREE, 9WAY CONN PLUG 9POS INLINE PIN Connector,StandardBuccaneer;Pin;9;69.0mm;38.1mm;3.5to9mm;5A Connector: circular; plug; male; PIN:9; Buccaneer Standard; IP68 Cable plug Buccaneer, 9-pin 9, PX0728/P, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | ULRecognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 150VAC/DC | Voltage - Working | :150V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :65mm | Weight | 0.036 |
| Material | :Black nylon | Packaging | Bulk |
| Wire Gauge | :25AWG | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Contact Type | Pin | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Tin |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Plug, Male Pins | Contact Finish | Tin |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Copper Alloy |
| Housing Material | GlassFilledPolyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Male |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Mating Orientation | Threaded | Number of Contacts | 9 |
| Contact Termination | :Crimp | Dielectric Material | Polyamide |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide, Glass Filled | Wire Gauge or Range - AWG | :24AWG |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8.1mm |
Product Info
| Spg | 25 | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
| Adapter Series | Buccaneer Standard | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0727/S
Bulgin
Standard Circular Connector 9 POLE CHAS MT SKT CONN RCPT 9POS PNL MNT SKT 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port SOCKET, SEALED PANEL, 9WAY Connector;Socket;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Connector: circular; socket; female; PIN:9; Buccaneer Standard Device bushing Buccaneer, 9-pin 9, PX0727/S, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 插座

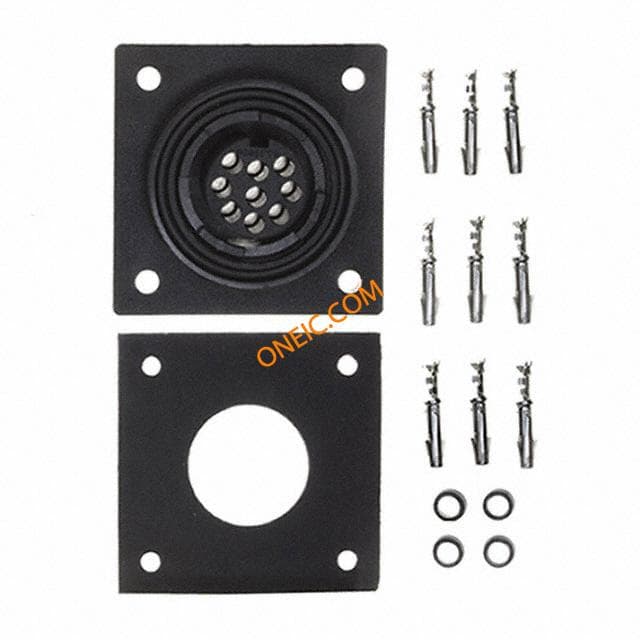

PX0769/S
