PX0686/SE
| Manufacturer | |
| Description | CONN AC PLUG R/A MALE Black re-wireable r/a plug,10A 250Vac C14 Male Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac AC Power Entry Modules AC POWER PLUG R/A Conn Power M 3 POS Screw RA Cable Mount 3 Terminal 1 Port PLUG, IEC, RIGHT ANGLE, FREE IECPowerConnector;SideEntry;Male;CableMount;ScrewTerminals;10A,250VAC Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug black, PX0686/SE, Bulgin Bulgin C14 电缆安装 直角 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, IMQ, SEMKO, UL, VDE |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Current Rating (Max) | 10A |
| Connector - Voltage Input | C14 (E) | ||
Mechanical
| Depth | :51.7mm | Width | :72.1mm |
| Length | :22.6mm | Weight | 0.032 |
| AC Outlets | :1 | Orientation | right |
| Termination | Screw Down | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line), Right Angle | Connector Type | Plug, Male Pins |
| Contact Finish | Nickel | Mounting Style | Snap In |
| Connector Style | IEC 320-C14 | Fuseholder Type | Drawer Not Required |
| Housing Material | Nylon | Package Quantity | 100 |
| Connector - Cable | C14 | Termination Style | Screw |
| Contact Termination | :Screw | Number of Positions | 3 |
| Material - Housing & Prism | :Black noryl | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :7.6mm | ||
Product Info
| Spg | 100 | Fused | No |
| Gender | Male | Series | :- |
| Fuse Type | :10A | Number of Units | 1 |
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
Documents & Media
Similar Parts
PX0675/63
Bulgin
AC Power Entry Modules SC MOUNT .25 TABS CONN AC OUTLET 6.3MM TAB FLNG MT C13 Female Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac Black flange fixing std skt,10A 250Vac Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port OUTLET, IEC, FLANGE FIXING PowerOutlet;IEC320-2-2;FlangeMount;6.3mmTab;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C13 (F); socket; female; 10A Flush-mounted device socket C13, screw-mounted Screw mounting, PX0675/63, Bulgin Bulgin C13 面板安装 直向 插座 IEC 插头, 焊接端接, 额定10A, 250 V 交流
PX0675/PC
Bulgin
ACパワーエントリモジュール PWR INLET PC PINS CONN AC OUTLET PC FLANG REAR MNT C13 Male Right Angle Through Hole IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules PWR INLET PC PINS Conn Inlets M 3 POS 7mm Solder RA Thru-Hole 3 Terminal 1 Port OUTLET, IEC, PCB PowerOutlet;IEC320-2-2;PCFlangeRearMount;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C13 (F); socket; female; THT; 10A Bulgin C13 通孔 直角 插座 IEC 插头, 焊接端接, 额定10A, 250 V 交流

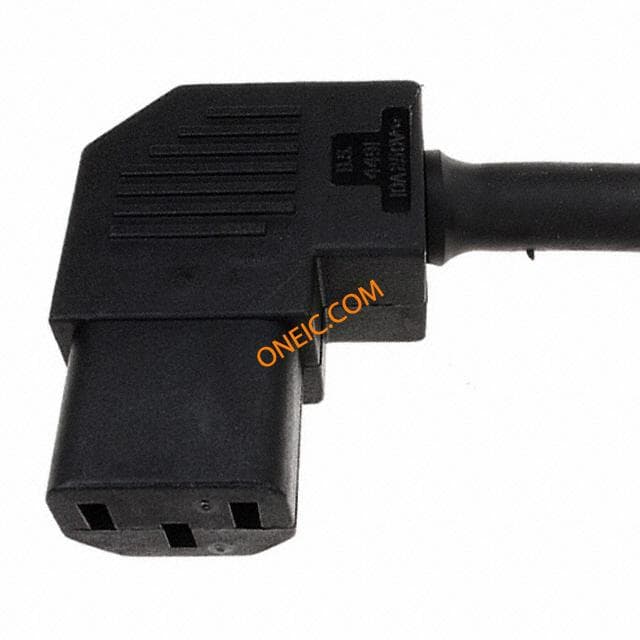

PX0587/SE
Bulgin
CONN AC PLUG R/A FEMALE C13 Female Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable r/a socket,10A 240Vac AC Power Entry Modules AC POWER SOCKET R/A Conn Power F 3 POS Screw RA Cable Mount 3 Terminal 1 Port SOCKET, IEC, RIGHT ANGLE, FREE IECPowerConnector-C13;SideEntry;Female;CableMnt;ScrewTerm.;10A,250VAC Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable appliance socket black, PX0587/SE, Bulgin Bulgin C13 电缆安装 直角 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

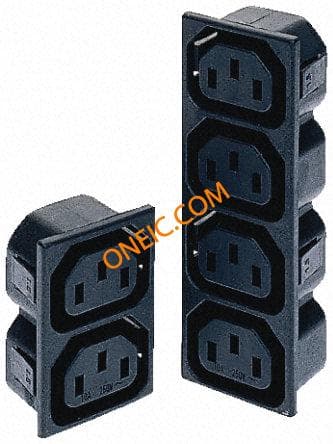

PX0714/2/15/28
