PX0587/SE
| Manufacturer | |
| Description | CONN AC PLUG R/A FEMALE C13 Female Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable r/a socket,10A 240Vac AC Power Entry Modules AC POWER SOCKET R/A Conn Power F 3 POS Screw RA Cable Mount 3 Terminal 1 Port SOCKET, IEC, RIGHT ANGLE, FREE IECPowerConnector-C13;SideEntry;Female;CableMnt;ScrewTerm.;10A,250VAC Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable appliance socket black, PX0587/SE, Bulgin Bulgin C13 电缆安装 直角 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :BS, CSA, EN 60320, IMQ, SEMKO, UL, VDE | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Current Rating (Max) | 10A |
| Connector - Voltage Input | C13 (F) | ||
Mechanical
| Depth | :51.5mm | Width | :65mm |
| Length | :18.4mm | Weight | 0.022 |
| AC Outlets | :1 | Orientation | right |
| Termination | Screw Down | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line), Right Angle | Connector Type | Plug, Female Sockets |
| Mounting Style | Cable | Connector Style | IEC 320-C13 |
| Fuseholder Type | Drawer Not Required | Housing Material | Nylon |
| Package Quantity | 100 | Connector - Cable | C13 |
| Termination Style | Screw | Contact Termination | :Screw |
| Number of Positions | 3 | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 100 | Fused | No |
| Gender | Female | Series | :- |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
Documents & Media
Similar Parts
PX0575/15/28
Bulgin
CONN AC RECEPT 2.8MM SLD SNAP IN AC Power Entry Modules SNAP-IN 1.5MM PNL TB Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port INLET, IEC, SNAP-FIT
PX0580/28
Bulgin
CONN AC INLET 2.8MM SLD FLNG MNT C14 Male Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules SC MOUNT SOL TABS Conn Power M 3 POS Solder ST Panel Mount 3 Terminal 1 Port INLET, IEC, SOLDER TAG IECPowerConnector-C14;FlangeMntInlet;2.8mmTab;15A,250VAC(UL/CSA) Bulgin C14 面板安装 直向 插头 IEC 插头, 焊接端接, 额定10A, 250 V 交流

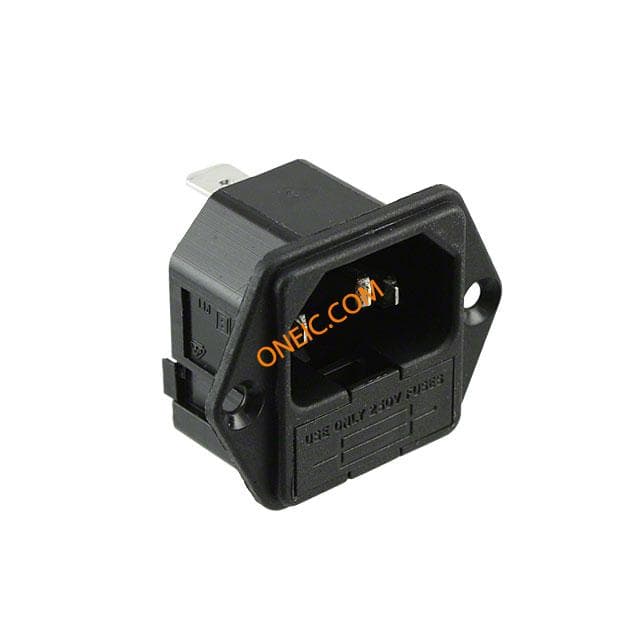

PF0001/63
