PX0675/63
| Manufacturer | |
| Description | AC Power Entry Modules SC MOUNT .25 TABS CONN AC OUTLET 6.3MM TAB FLNG MT C13 Female Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac Black flange fixing std skt,10A 250Vac Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port OUTLET, IEC, FLANGE FIXING PowerOutlet;IEC320-2-2;FlangeMount;6.3mmTab;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C13 (F); socket; female; 10A Flush-mounted device socket C13, screw-mounted Screw mounting, PX0675/63, Bulgin Bulgin C13 面板安装 直向 插座 IEC 插头, 焊接端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Outlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | :CSA, IMQ, SEMKO, UL, VDE |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V |
| Switch Function | Not Switched | Current Rating (Max) | 10 A |
| Connector - Voltage Input | C13 (F) | ||
Mechanical
| Width | :32.26mm | Weight | 0.016 |
| AC Outlets | :1 | Termination | Solder |
| Body Material | polyamide | Mounting Type | Panel Mount, Screw Hole |
| Terminal Type | :6.35mm x 0.8mm | Connector Type | C-13 |
| Contact Finish | Tin | Mounting Style | Flange |
| Connector Style | IEC 320-C13 | Fuseholder Type | Drawer Not Required |
| Housing Material | Nylon | Package Quantity | 200 |
| Connector - Cable | C13 | Termination Style | Solder Tab |
| Contact Termination | :Solder | Number of Positions | 3 |
| Mounting Hole Spacing | 40mm | Mounting Hole Diameter | :3.5mm |
| Panel Cutout Dimensions | :24.77mm | Mounting Panel Thickness | :40mm |
| Material - Housing & Prism | :Nylon | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 200 | Fused | No |
| Gender | Female | Series | :- |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
Documents & Media
Similar Parts
14228
Bulgin
BLANKING COVER BLACK accessory; blanking cover AC Power Entry Modules BLANKING COVER BLANKING COVER, IEC CONNECTORS accessory,blankingcover Bulgin 3路 面板安装 直向 外壳 插头
PX0686
Bulgin
CONN AC PLUG STR MALE C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Blk re-wireable straight plug,10A 250Vac AC Power Entry Modules AC POWER PLUG Conn Power M 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IEC C14, STRAIGHT, FREE Blkre-wireablestraightplug,10A250Vac Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug, C14 black, PX0686, Bulgin Bulgin C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

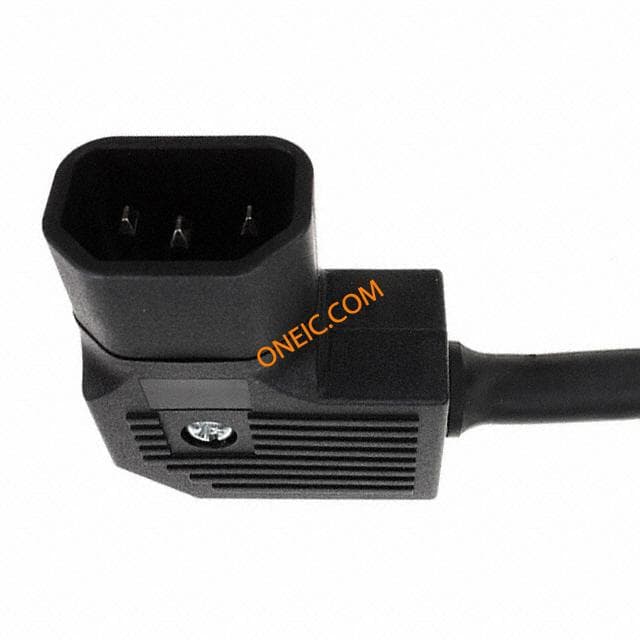

PX0686/SE
Bulgin
CONN AC PLUG R/A MALE Black re-wireable r/a plug,10A 250Vac C14 Male Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac AC Power Entry Modules AC POWER PLUG R/A Conn Power M 3 POS Screw RA Cable Mount 3 Terminal 1 Port PLUG, IEC, RIGHT ANGLE, FREE IECPowerConnector;SideEntry;Male;CableMount;ScrewTerminals;10A,250VAC Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug black, PX0686/SE, Bulgin Bulgin C14 电缆安装 直角 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

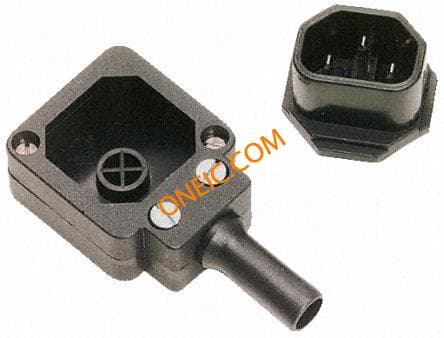

PX0685
