PX0580/63
| Manufacturer | |
| Description | CONN AC INLET 6.3MM TAB FLNG MNT C14 Male Straight Panel Mount IEC Connector, Rated At 10A, 250V ac AC Power Entry Modules SC MOUNT .25 FASTON Conn Power M 3 POS ST Panel Mount 3 Terminal 1 Port INLET, IEC, 6.35MM, TAB PowerInlet;IEC320-1;FlangeMount;6.3mmTab;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C14 (E); socket; male; 10A; 250VAC Flush-type device plug C14 Screw mounting, PX0580/63, Bulgin Bulgin C14 面板安装 直向 插头 IEC 插头, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :BS, CSA, SEMKO, IMQ, VDE, UL |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Current Rating (Max) | 10A |
| Connector - Voltage Input | C14 (E) | ||
Mechanical
| Weight | 0.015 | AC Outlets | :1 |
| Termination | :Solder / Screw | Body Material | polyamide |
| Mounting Type | Panel Mount, Screw Hole | Terminal Type | :6.35mm x 0.8mm |
| Connector Type | Receptacle, Male Pins | Contact Finish | Tin |
| Mounting Style | Flange | Connector Style | IEC 320-C14 |
| Fuseholder Type | Drawer Not Required | Housing Material | Nylon |
| Package Quantity | 100 | Connector - Cable | C14 |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Contact Termination | :Quick Connect |
| Number of Positions | 3 | Mounting Hole Spacing | 40mm |
| Mounting Hole Diameter | :3.5mm | Mounting Panel Thickness | :40mm |
| Material - Housing & Prism | :Black nylon | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 100 | Fused | No |
| Gender | Male | Series | :- |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
Documents & Media
Similar Parts
11328
Bulgin
AC Power Entry Modules INSULATION BOOT INSULATION BOOT BLACK IEC connector insul boot,46x29.8x22.2mm Connector Accessories Insulation Boot Polyvinyl Chloride Bulgin 绝缘套管 绝缘罩, 29.8 x 46 x 22.2mm
KT0006
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL CLIP RETAINER FOR POWER PLUG IEC connector retaining clamp kit,KT0006 Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, IEC CONN IECRETAININGCLIP Spring clip; Application: PX0580,PX0587,PX0675,PX0686 Circlip, 43 mm, KT0006, Bulgin Bulgin 固定夹 固定夹

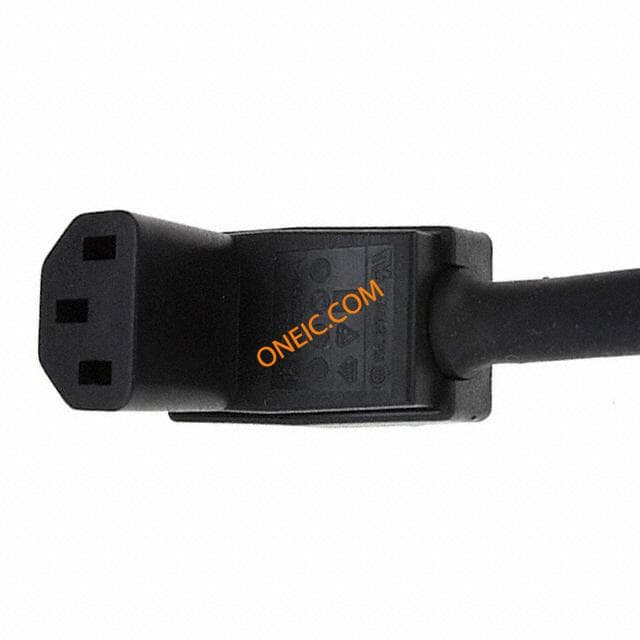

PX0588
