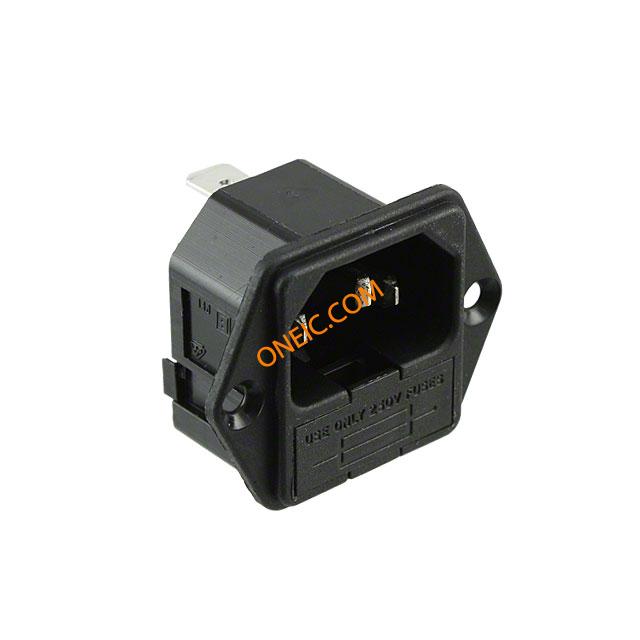

PF0001/63
| Manufacturer | |
| Description | PWR MODULE 6.3MM FUSED FLANG MNT C14 Male Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules SC MOUNT FUSED 6.3MM Power Entry Module Filtered M 3 POS 250VAC 10A Fuse ST 1 Port INLET, IEC, FUSED, PANEL PowerInlet;IEC320;FlangeMount;6.3mmTab;5x20mmFused;10A,250VAC Connector: IEC 60320,AC mains; C14 (E),1x fuse; socket; male Plug C14 Faston 6.3 x 0.8 mm 10 A/250 VAC black Screw mounting L + N + PE, PF0001/63, Bulgin Bulgin C14 面板安装 直向 插头 IEC 插头, 安装片端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, IMQ, SEMKO, UL, VDE |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.016 | Lead Style | 6.3x0.8mm connectors |
| Termination | Solder | Body Material | polyamide |
| Mounting Type | Panel Mount, Screw Hole | Connector Type | Receptacle, Male Pins - Module |
| Contact Finish | Nickel | Mounting Style | Flange |
| Connector Style | IEC 320-C14 | Fuseholder Type | Included |
| Housing Material | Nylon | Package Quantity | 300 |
| Connector - Cable | C14 | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Shape | :27.3 x 31.1mm | Contact Termination | :Quick Connect |
| Number of Positions | 3 | Mounting Hole Spacing | 36mm |
| Mounting Hole Diameter | :3.4mm | Mounting Panel Thickness | :36mm |
| Material - Housing & Prism | :Black nylon | 1st Connector Mounting Type | :Flange |
Product Info
| Spg | 300 | Fused | Yes |
| Gender | Male | Series | :- |
| Features | Fuse Holder | Fuse Size | :5mm x 20mm |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
Documents & Media
Similar Parts

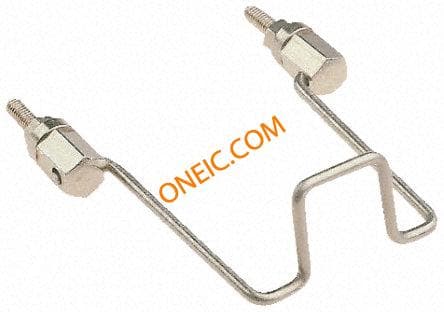

KT0009
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL IEC RETAINING CLIP IEC connector retaining clamp kit,KT0009 Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, IEC CONN Spring clip; Application: PF0001,PF0030,PX0587 Bulgin 固定夹 固定夹

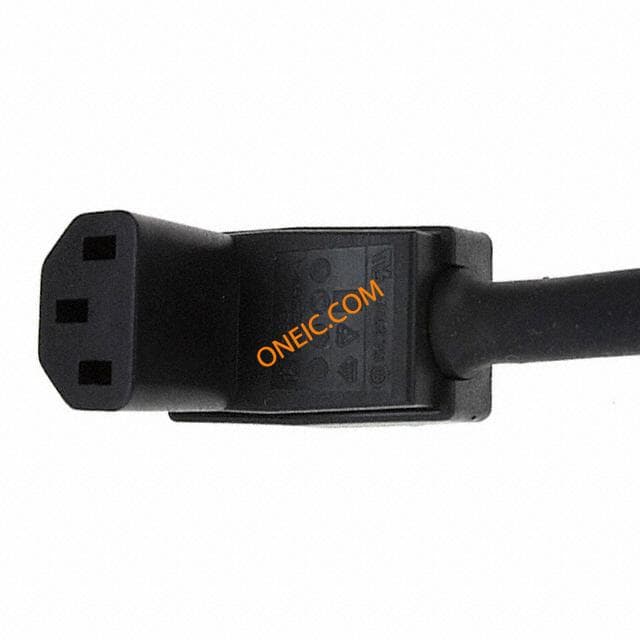

PX0588
