PX0443
| Manufacturer | |
| Description | USB Connectors USB PNL FRONT MNT CABLE IP68 B MINI USB-5WAY CRIMP IP68 Mini B USB conn front panel + crimp Cable Assembly Data 0.108m 5 POS USB Type B F CONNECTOR, USB B, RECEPTACLE, PANEL CONNECTOR,PANELMOUNT,MINIUSBBTYPE Socket; USB B mini; Mini USB Buccaneer; PIN:5; IP68 Bulgin USB 电缆组件 |
| Category |
Business
| Product | Mini USB Type B Connectors | Other Names | 708-1235 |
| Product Category | USB Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 30 VAC, 42 VDC | Voltage - Supply | USB |
| Current Rating (Max) | 1 A | Number of Conductors | 5Conductors |
Mechanical
| Color | Black | Length | 0.39' (120.6mm) |
| Weight | 0.01 | Shielding | Shielded |
| Cable Type | Round | Cable Length | 0.108m |
| 1st Connector | Female Mini USB B | 2nd Connector | Crimp Socket |
| Connector Type | IP68 B type Mini USB, front panel mounted, 5 way crimp connector at rear | Contact Finish | :Gold |
| Mounting Style | Panel | Locking Feature | threaded joint |
| Panel Thickness | max 3.2mm | Contact Material | :- |
| Package Quantity | 25 | Connector - Cable | socket |
| Termination Style | Crimp | 2nd Connector Type | 5-WayCrimp |
| Color - Connectors | Black | Number of Contacts | :4 |
| Contact Termination | :- | Number of Positions | 5 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 25 | USB | USB 2.0 |
| Type | USB | Usage | Industrial Environments - IP68 |
| Gender | :Socket | Series | :Buccaneer |
| Adapter Series | Mini USB Buccaneer | Number of Units | 1 |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP68 |
| Ingress Protection | IP68 | Temperature Rating | 0to+70°C |
| Operating Temperature | :+70°C | ||
Documents & Media
Similar Parts
PX0441/4M50
Bulgin
Cable Assemblies USB MINI B 4.5M CBL CABLE IP68 MINI B TO A USB 4.5M IP68 Mini USB B to Std USB A 4.5m cable USB Cables / Firewire Cables USB MINI B 4.5M CBL LEAD, STD USB A TO MINI USB B, 4.5M CABLEASSEMBLY,USBMINIBTYPETOSTANDARDATYPE,4.5M,IP68SEALED Bulgin 电缆组件, Mini USB B 至 USB A
PX0443
Bulgin
USB Connectors USB PNL FRONT MNT CABLE IP68 B MINI USB-5WAY CRIMP IP68 Mini B USB conn front panel + crimp Cable Assembly Data 0.108m 5 POS USB Type B F CONNECTOR, USB B, RECEPTACLE, PANEL CONNECTOR,PANELMOUNT,MINIUSBBTYPE Socket; USB B mini; Mini USB Buccaneer; PIN:5; IP68 Bulgin USB 电缆组件
PX0441/2M00
Bulgin
Cable Assemblies USB MINI B 2M CBL CABLE IP68 MINI B TO A USB 2M IP68 Mini USB B to Std USB A 2m cable USB Cables / Firewire Cables USB MINI B 2M CBL Cable Assembly Data 2m 5 POS Mini-USB to 5 POS Mini-USB PL-PL CABLE, USB A PLUG TO USB MINI B PLUG, 2M CABLEASSEMBLY,USBMINIBTYPETOSTANDARDATYPE,2M,IP68SEALED Transition: adapter cable; internal thread; Mini USB Buccaneer Bulgin 电缆组件, Mini USB B 至 USB A
PX0442/2M00
Bulgin
Cable Assemblies USB MINI B 2M CBL CABLE IP68 MINI B-MINI A USB 2M IP68 Mini USB B to Mini USB A 2m cable USB Cables / Firewire Cables USB MINI B 2M CBL Cable Assembly Data 2m 5 POS Mini-USB to 5 POS Mini-USB PL-PL LEAD, MINI USB A TO MINI USB B, 2M CABLEASSEMBLY,USB,MINIBTYPETOMINIATYPESEALEDIP68,2M Bulgin USB 电缆组件
PX0441/3M00
Bulgin
Cable Assemblies USB MINI B 3M CBL CABLE IP68 MINI B TO A USB 3M IP68 Mini USB B to Std USB A 3m cable USB Cables / Firewire Cables USB MINI B 3M CBL LEAD, STD USB A TO MINI USB B, 3M CABLEASSEMBLY,USBMINIBTYPETOSTANDARDATYPE,3M,IP68SEALED Bulgin 电缆组件, Mini USB B 至 USB A
PX0442/4M50
Bulgin
Cable Assemblies USB MINI B 4.5M CBL CABL IP68 MINI B-MINI A USB 4.5M USB Cables / Firewire Cables USB MINI B 4.5M CBL CABLEASSEMBLY,USB,MINIBTYPETOMINIATYPESEALEDIP68,4.5M
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

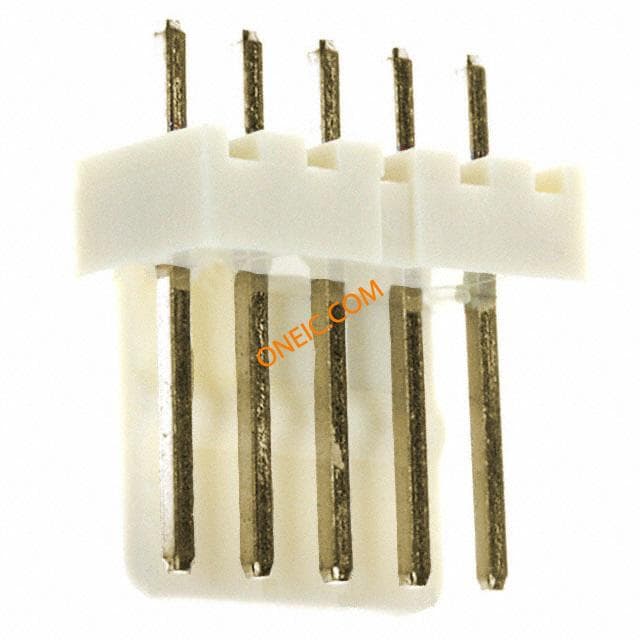

14191
