14191
| Manufacturer | |
| Description | CONN HEADER STR 5POS PCB Adaptor Lead; PCB; PCB header straight; 5; 2.54 mm; 1.5 to 480 Mbs; 12.7 mm Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole CONNECTOR, HEADER, THT, 2.54MM, 5WAY AdaptorLead,PCB;PCBheaderstraight;5;2.54mm;1.5to480Mbs;12.7mm Bulgin USB Buccaneer 系列 PCB 直向针座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 708-1028 | Standard Package | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Speed | 1.5to480Mbs | Range deg/s | :BULGIN - Buccaneer Series |
| Voltage Rating | :30V | Number of Poles | 5 |
| Voltage - Working | :30V | Contact Resistance | :10mohm |
| Current Rating (Max) | :1A | ||
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Width | 12.7mm | Height | 14.2mm |
| Weight | 0.0003 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Fastening Type | Friction Lock | Number of Rows | 1 |
| Contact Material | :Copper Alloy | Number of Contacts | :5 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 5 |
| Material - Insulation | :PC (Polycarbonate) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | :Plug | Number of Positions Loaded | All |
Environmental
| Mating Cycles | :1000 | NEMA Frame Size | :IP68, IP69K |
| Operating Temperature | :70°C | ||
Documents & Media
PDF Document
Similar Parts

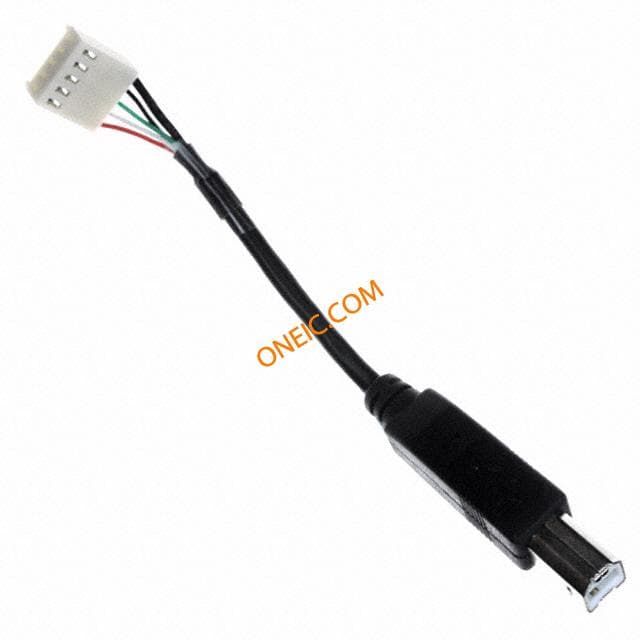

14194
Bulgin
USB Connectors USB B-5P CRIMP CON CABLE USB B TO 5 WAY CRIMP 100MM Assembly; Cable; 100.0 10.0 in.; USB Cable Assembly PVC 1m 28AWG 5 POS USB to 5 POS Power PL-F Crimp-Crimp LEAD, ADAPTOR USB B TO 5W CRIMP Assembly,Cable;100.010.0in.;USB Bulgin 100mm 黑色 USB 电缆组件, USB 2.0
$46.3080
Details

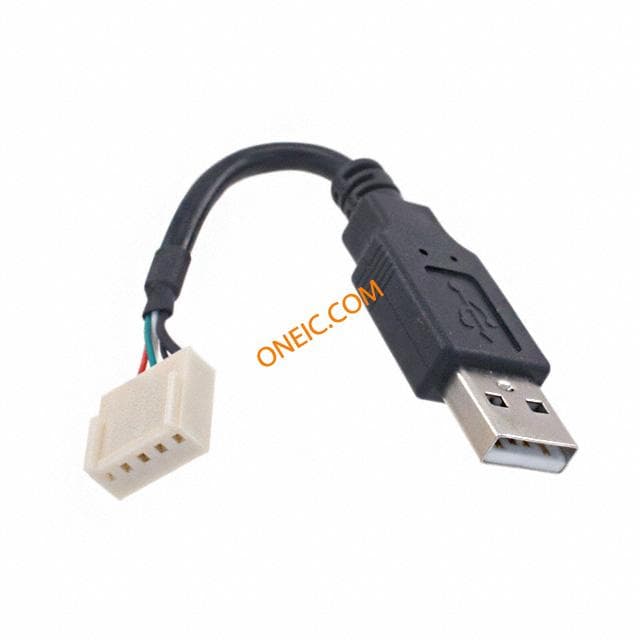

14193
