PX0410/04P/4550
| Manufacturer | |
| Description | Standard Circular Connector 4 POLE FLEX PLUG CONN HSNG PLUG CABLE 4POS PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port PLUG, FREE, 4WAY CONN HSNG PLUG INLINE 4POS PIN Connector;Plug;4;46mm(Max.);5A;125VAC/VDC;5Milliohms(Max.) Connector: circular; plug; male; PIN:4; w/o terminals; for cable Cable plug Buccaneer 400, 4-pole 4, PX0410/04P/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 125 V ac/dc | Voltage - Working | :125V |
| Contact Resistance | :5mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :10Mohm | Connector - Voltage Input | w/o terminals |
Mechanical
| Weight | 0.005 | Material | :Nitrile |
| Packaging | Bulk | Wire Gauge | :22AWG |
| Orientation | Keyed | Shell Style | Plug |
| Size - Body | Ø19.1 x 46mm | Termination | Crimp |
| Contact Type | Crimp and Solder Cup | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 4.5-5mm | Connector Type | Plug for Male Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Shell Material | Plastic |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Copper Alloy |
| Housing Material | Polyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Crimp / Solder | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - AWG | :26AWG |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :5.0mm |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Type | CablePlug | Gender | :Plug |
| Series | Buccaneer | Features | ScrewLocking |
| Manufacturer | 400Series | Product Type | Connectors |
| Adapter Series | Buccaneer 400 | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
14025/5AMP
Bulgin
Crimpers POSITIONER 5A RED TOOL CRIMP POSITIONER FOR 5A Tool; Positioner; 12 pole Connector Accessories Positioner 5A Red 12 POS POSITIONER, 22-26AWG Tool,Positioner,12pole Limit stop for contacts SA3348/3347, 14025/5AMP, Bulgin
PX0411/04S/5055
Bulgin
Standard Circular Connector 4 POLE FLEX SKT 5.0-5.5MM YELLOW CONN HSNG RCPT IN-LINE 4POS SKT
PX0411/04S/3035
Bulgin
Standard Circular Connector 4 POLE FLEX SKT 3.0-3.5MM LIGHT GREY CONN HSNG RCPT IN-LINE 4POS SKT
PX0412/04S
Bulgin
Standard Circular Connector 4 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 4POS SKT 4 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CIRCULAR, RECEPTACLE, 4 WAY, PANEL Connector;Socket;4;22to26AWG;CrimpandSolder;5A;125VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:4; w/o terminals; IP68 appliance socket Buccaneer 400, 4-pole 4, PX0412/04S, Bulgin Bulgin Buccaneer 系列 4路 面板安装 直向 连接器 , 母触点
PX0413/04S/PC
Bulgin
Standard Circular Connector PCB skt conn- 4 pole CONN RCPT 4POS PNL MNT PCB SKT 4 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port SOCKET, PCB, 4POLE Connector,CircularIP68;4;Crimp,SolderandPCB;5A;125VAC/VDC;Gold Bulgin Buccaneer 系列 4路 通孔 直向 连接器 , 母触点
SA3347/1
Bulgin
Standard Circular Contacts SOLDERSKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A SLD 22-26AWG 1=10PC 400 Series 5A Female Circular Connector Contact, Solder,Wire size 26 to 22AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 22-26AWG, PK10 Contacts,Solder,Socket,for4,6,8Pole400SeriesBuccaneerConnectors Contact; female; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 4, 6 and 8-pole, SA3347/1, Bulgin Bulgin 400 系列 5A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
PX0482
Bulgin
Standard Circular Connector GLAND PACK CONN GLAND 3.0-5.0MM O/D CABLES Buccaneer 400 gland pack for 3-5mm cable Connector Accessories Gland Pack CABLE GLAND, 3-5MM, PACK 4 X 2 CABLE GLAND SealingCap,Connector;Cablesfrom3.0mmto5.0mmDia.;400Series Gaskets set; Buccaneer 400; IP68; 3÷5mm; Application: PX04.. Set 4 Pairs Glands & Collets for ø 3...5 mm, PX0482, Bulgin Bulgin 电缆固定头 , -40°C至+80°C
PX0410/04P/4550
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG CONN HSNG PLUG CABLE 4POS PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port PLUG, FREE, 4WAY CONN HSNG PLUG INLINE 4POS PIN Connector;Plug;4;46mm(Max.);5A;125VAC/VDC;5Milliohms(Max.) Connector: circular; plug; male; PIN:4; w/o terminals; for cable Cable plug Buccaneer 400, 4-pole 4, PX0410/04P/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 公触点
.JPG&w=3840&q=75)

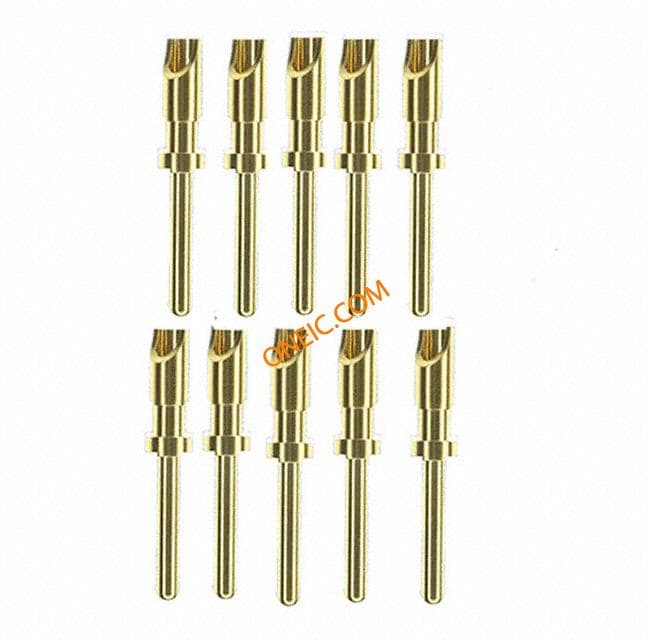

SA3348/1
Bulgin
Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格

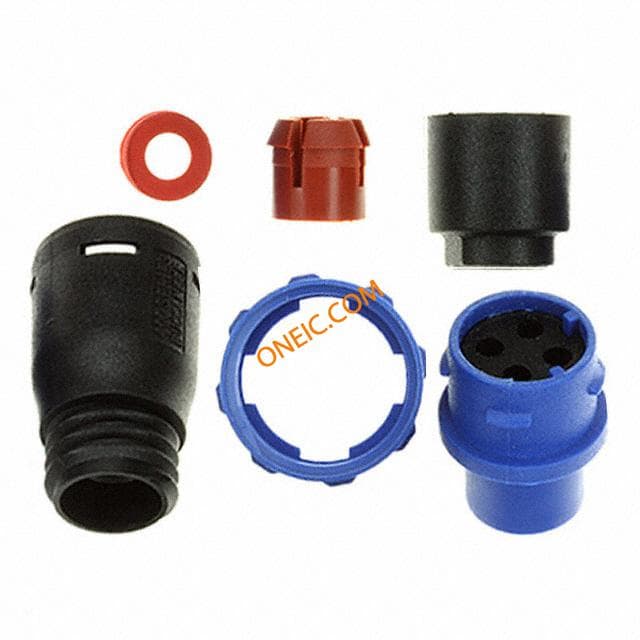

PX0410/04S/4550
Bulgin
Standard Circular Connector 4 POLE FLEX SKT CONN HSNG PLUG CABLE 4POS SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 4 WAY, CABLE CIRCULAR CONNECTOR, FEMALE, 4POS, CABLE CONN HSNG PLUG INLINE 4POS SKT Connector,Cable;Socket;4;46mm(Max.);5A;125VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:4; w/o terminals; for cable Cable socket Buccaneer 400, 4-pole 4, PX0410/04S/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 母触点
SA3348
Bulgin
Standard Circular Contacts CRIMP PIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A 22-26AWG CRMP 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 26 to 22AWG Contact PIN Crimp ST Cable Mount CIRCULAR CONTACT, PIN, 26-22 AWG, CRIMP Contacts,CrimpPin,4&8Pole Crimp contact, male, for 4, 6 and 8-pole, SA3348, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
PX0481
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0410/PX0415 Buccaneer 400 cable mount sealing cap Connector Accessories Sealing Cap SealingCap,Connector;Flexcableconnector;400Series Protection cover; threaded joint, external thread; IP68 Protective cap for cable plugs/sockets, PX0481, Bulgin

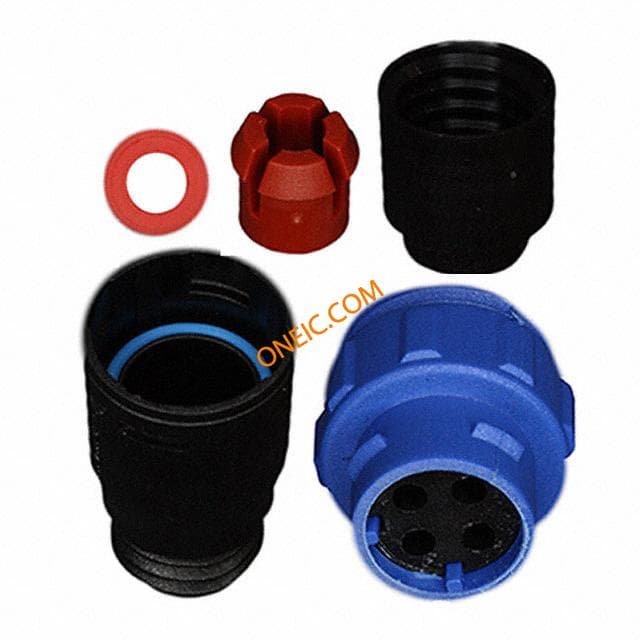

PX0411/04S/4550
