点击放大查看

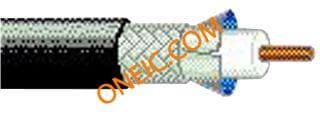

9248 010U500
| Manufacturer | |
| Description | Coaxial Cables 18AWG 1C SHIELD 500ft BOX BLACK CABLE, COAXIAL, RG-6/U, 18AWG, 75 OHM, 500FT, BLK CABLE, COAX, 9248, 153M Coax - 75 Ohm Coax 18 AWG PE/GIFHDPE SH FRPVC Black |
| Category |
Business
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85442000 | ||
Electrical
| Impedance | 75 Ohms | Capacitance | :53.1pF |
| Voltage Rating | 30 V | Conductor Strand | :1 / 1.02mm |
| Attenuation - Typ | :2.3dB | Attenuation Value | :6.6dB |
| Connector Impedance | 6/U | Number of Conductors | :1 x 1.02mm |
| VoP, Velocity of Propagation | :82% | Impedance - Unbalanced/Balanced | :RG6A/U |
Mechanical
| Length | 500 ft | Weight | 17 lbs |
| Shielding | Shielded | Cable Type | :RG6 |
| Wire Gauge | 18 | Jacket Color | Black |
| Outer Diameter | :6.86mm | Material - Core | :PVC |
| Insulation Color | :Black | Length - Overall | :500ft |
| Primary Material | :Aluminium, Polyester, Aluminium foil | Conductor Material | Copper |
| Diameter - Outside | 0.27 in | Number of Cable Pairs | Solid |
| Wire Gauge or Range - AWG | :18AWG | Jacket (Insulation) Material | Polyvinyl Chloride - PVC |
| UL Insulation System Approval | :UL1354 | ||
Product Info
| Series | 9248 | Port Style | :Tinned copper braid |
| Number of Bands | :9804C EQUIVALENT | Other Specifications | :9248 |
| Number of Positions/Contacts | 1 | ||
Environmental
| Operating Temperature | :80°C | Maximum Temperature Limit | + 75 C |
