31-70000
| Manufacturer | |
| Description | RF Connectors BNC PLUG 75OHM RG-6 connector;rf coaxial;bnc straight plug;crimp-crimp;for rg6;b9248;1694a;75 ohm RF Connectors / Coaxial Connectors BNC PLUG 75OHM RG-6 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-6 - Belden 533945, 5339B5, 5399B5, 633948, 633938; Coleman 92045, 92061, 921003 |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-70000 16R0622 713-8600 89F2857 |
| Product Category | RF Connectors / Coaxial Connectors | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85366910 |
Electrical
| Impedance | 75 Ohms | Coupling Factor | Bayonet |
| Frequency - Max | 4 GHz | ||
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Cable Type | RG-6, Belden 1694A, Belden 9248 | Body Finish | Nickel |
| Orientation | Straight | Body Material | Brass |
| Connector Type | :BNC Coaxial | Contact Finish | Gold |
| Contact Material | Brass | Termination Style | Cable - Crimp |
| Contact Termination | Crimp | Supplier Device Package | Straight |
Product Info
| Gender | Plug | Polarity | Standard |
| RF Family/Standard | BNC | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
Similar Parts
1694A 0101000
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 1000ft SPOOL BLACK CABLE, COAXIAL, RG6/U, 18AWG, 75 OHM, BLK, 1000FT COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Coax - Low Loss Serial Digital Coax 18 AWG PE/GIFHDPE SH FR PVC Black
1694A 010500
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE; RG-6/U; 18AWG SOLID; 75 OHM IMP.; DIGITAL VIDEO CABLE BLACK; 152m CABLE, COAXIAL, RG-6/U, 500FT, 18AWG, BLK COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Low loss serial digital coax cable, RG-6/U Type, 500’ reels, 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil + TC braid shield (95% coverage), PVC jacket
9118 0101000
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 1000ft SPOOL BLACK Coax - CATV Cable 18 AWGGIFHDLDPE SH FS FRPVC Black
1530A 0101000
Belden Wire & Cable
Coaxial Cables 18AWG COAX S6 SOLID 1000ft SPOOL BLACK Coax - CATV Cable 18 AWG GIFHDLDPE SH FR PVC Black
1530A 010U1000
Belden Wire & Cable
Coaxial Cables 18AWG COAX S6 SOLID 1000ft BOX BLACK
7915A 010U500
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 500ft BOX BLACK CABLE, COAXIAL, RG-6/U, 18AWG, 500FT, BLACK Coax - Series 6 18 AWG GIFHDLDPE SH FS FRPVC Black
112508
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold RF Connectors BNC CRIMP PLUG RG 6/U-75 OHM CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg6 cable;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 6/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg6 cable, 75 ohm

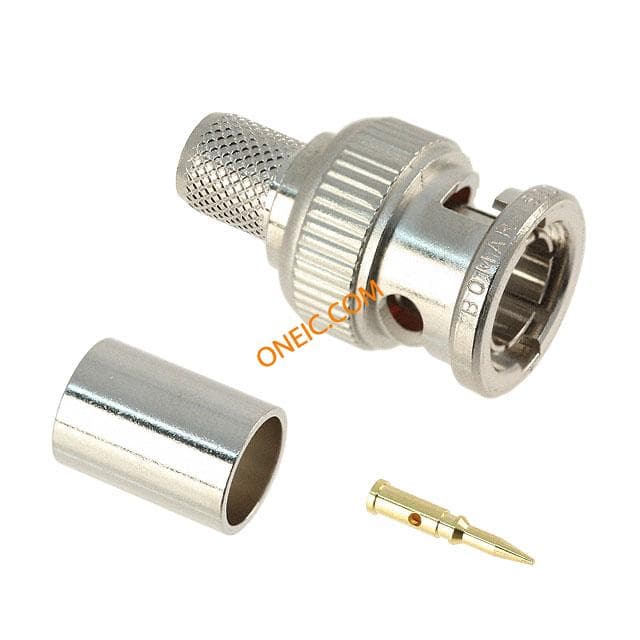

SBC1694A
Bomar Interconnect
RF Connectors PLUG FOR 1694A CONN BNC PLUG STR 75 OHM CRIMP Connector; RF Coaxial;75 Ohms;RG6;BNC;For Belden 1694A Cable;Machined Brass RF Connectors / Coaxial Connectors PLUG FOR 1694A Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Nickel Connector,RFCoaxial;75Ohms;RG6;BNC;ForBelden1694ACable;MachinedBrass
SPC11209
Avnet, Inc.
RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP
SBC1694A
Winchester Electronics
CONN BNC PLUG STR 75 OHM CRIMP
