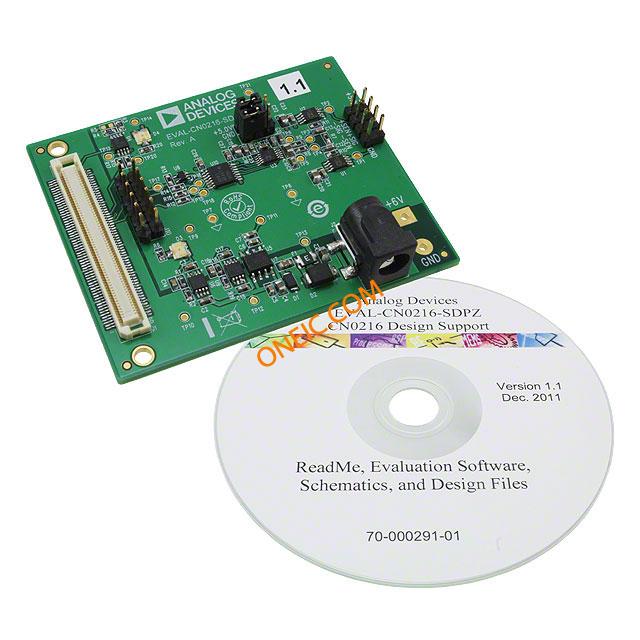

EVAL-CN0216-SDPZ
| Manufacturer | |
| Description | Evaluation Board For CN-0216 EVAL BOARD FOR CN0216 Data Conversion IC Development Tools CftL CN0216 Eval BRD AD7791, WEIGH SCALE, EVAL BOARD Analog Devices 评估测试板 |
| Category |
Business
| Product | Evaluation Boards | Other Names | EVALCN0216SDPZ |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Interface | USB | Voltage - Supply | 6 V |
| Number of Elements | :AD7791, ADA4528 | ||
Mechanical
| Weight | 0.25 | Packaging | Bulk |
Product Info
| Type | ADC | Contents | Board |
| Embedded | No | Features | :Precision Weigh Scale Measurement |
| Kit Type | :Amplifier | Kit Contents | :EVAL-CN0216-SDPZ Evaluation Board, Software CD |
| Main Purpose | Reference Design, Weight Scale | Tool Type Feature | AD7791, ADA4528-1 |
| Utilized IC / Part | AD7791, ADA4528-1, ADP3301 | Chipset Manufacturer | :Analog Devices |
| Application Specifics | :Signal Conditioning Amplifiers | For Use With/Related Products | EVAL-SDP-CB1Z |
