点击放大查看

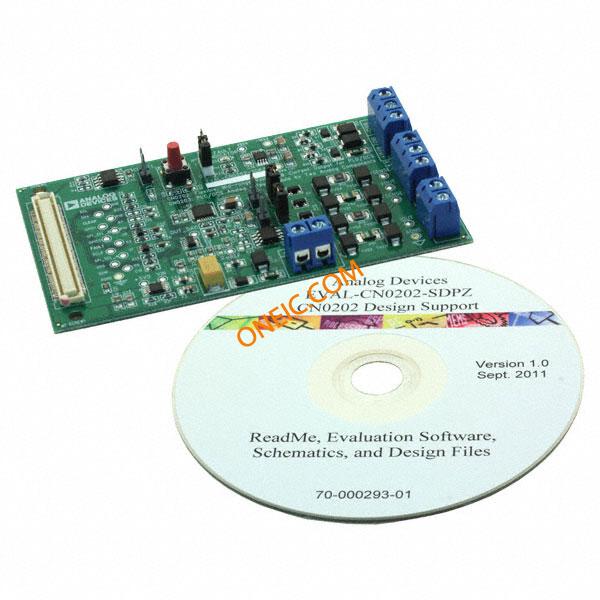

EVAL-CN0202-SDPZ
| Manufacturer | |
| Description | Evaluation Board For CN-0202 BOARD CFTL AD5662 Other Development Tools CftL CN0202 Eval BRD AD5750, AD5662, ANALOG OUTPUT MODULE Analog Devices 评估测试板 |
| Category |
Business
| Product | Evaluation Boards | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84735080 |
Electrical
| Interface | 120 pin connectors | Voltage - Supply | 6 V, +/- 15 V |
| Number of Elements | :AD5662, AD5750, ADR444 | ||
Mechanical
| Weight | 0.25 | Packaging | Bulk |
Product Info
| Type | PLC/DCS Analog Output Modules | Contents | Board |
| Embedded | No | Features | :On-chip Output Fault Detection, CRC Checking to Prevent Packet Error, Flexible Power-up Options |
| Function | Flexible, High Accuracy, Low Drift, PLC/DCS Analog Output Module | Kit Type | :Data Converter |
| Kit Contents | :Board, User Guide | Main Purpose | Reference Design, Analog Output Module |
| Tool Type Feature | AD5662, AD5750, ADR444 | Utilized IC / Part | AD5662, AD5750 |
| Chipset Manufacturer | :Analog Devices | Application Specifics | :DAC |
| For Use With/Related Products | EVAL-SDP-CB1Z | ||
Documents & Media
Similar Parts
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
SN74LVC1G125DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74LVC1G125DCKR, 1-Bit Buffer, Line Driver, LVC, 3-State Non-Inverting 1.65 to 5.5V 5-Pin SC-70 BUFFER GATE, SINGLE, SMD, SC-70-5 IC, BUFFER, NON-INVERT, SC-70-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G125, SN74LVC1G125DCKR, Texas Instruments LVC, 1-Bit 三态 非反相 缓冲器，线路驱动器, 5针 SC-70封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
ADR444ARMZ
analog devices
V-Ref Precision 4.096V 10mA 8-Pin MSOP Tube IC VREF SERIES PREC 4.096V 8MSOP ADR444ARMZ, Precision Voltage Reference 4.091 to 4.101V, 0.13% 10mA 20V Max. 8-Pin MSOP Voltage References LDO 4.096V w/ Crnt Sink & Srce IC, SM, VOLT REF, XFET, LDO Analog Devices Fixed 4.096V 电压参考, ±0.13 %精确度, 10mA, 20 V输入, 8针 MSOP封装
ADR444ARZ
analog devices
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube IC VREF SERIES PREC 4.096V 8SOIC ADR444ARZ, Precision Voltage Reference 4.091 to 4.101V, 0.13% 10mA 20V Max. 8-Pin SOIC Voltage References LDO 4.096V w/ Crnt Sink & Srce IC, SM, VOLT REF, XFET, LDO Analog Devices Fixed 4.096V 电压参考, ±0.13 %精确度, 10mA, 20 V输入, 8针 SOIC封装

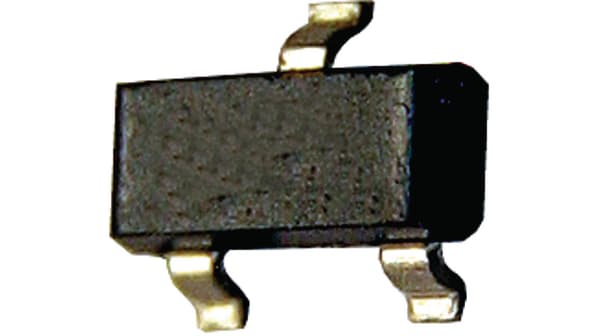

BAT54S
