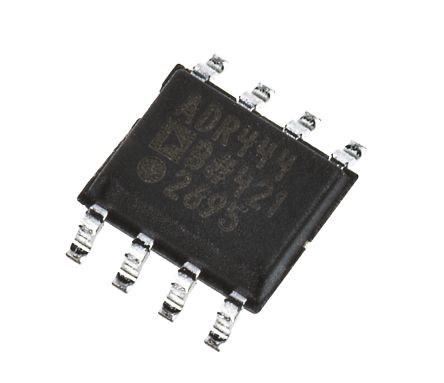

ADR444BRZ
| Manufacturer | |
| Description | V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube IC VREF SERIES PREC 4.096V 8SOIC ADR444BRZ, Precision Voltage Reference 4.094 to 4.098V, 0.04% 10mA 20V Max. 8-Pin SOIC Voltage References LDO 4.096V w/ Crnt Sink & Srce Analog Devices Fixed 4.096V 电压参考, ±0.04 %精确度, 10mA, 20 V输入, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Standard Package | Rail / Tube |
| Factory Pack Quantity | 98 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Accuracy | 50 ppm/mA | Tolerance | ±0.04% |
| Reference Type | Precision | Voltage Rating | 4.096 V |
| Line Regulation | 20 ppm/V | Load Regulation | 50 ppm/mA |
| Current - Output | 10 mA | Current - Supply | 3.75 mA |
| Voltage - Supply | 20 V | Voltage - Nominal | 4.096V |
| Number of Channels | 1 | Current Rating (Max) | 10mA |
| Voltage - Input (Min) | 4.096V | Voltage - Output (Max) | 4.098 V |
| Current - Quiescent (Iq) | 3.75mA | Voltage Regulation - Load | 20 ppm/V |
| Current - Output / Channel | 10 mA | Accuracy - Highest (Lowest) | 0.04 % |
| Voltage - Output (Min/Fixed) | 4.094 V | Common Mode Transient Immunity (Min) | Extended Industrial |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Package Quantity | SOIC N | Size / Dimension | 5 x 4 x 1.5mm |
| Number of Positions | 8 | Supplier Device Package | 8-SOIC N |
Product Info
| Series | ADR444 | Function | Y |
| Topology | Series | Manufacturer | Analog Devices |
| Programmable | Precision | ||
Environmental
| Operating Temperature | -40 to 125 °C | Temperature Coefficient | 3 ppm/°C |
| Temperature Coefficient (Typ) | 1 PPM / C | ||
