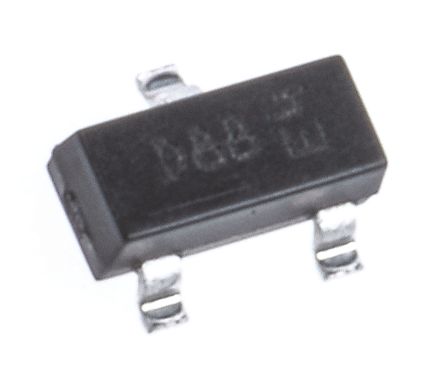

BAT54S
| Manufacturer | |
| Description | BAT54S, Schottky Diode, 0.3A 40V 5ns Dual, 3-Pin, SOT-23 BAT54S STMicroelectronics 肖特基 二极管, 300mA 40V 5ns, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Current - Test | 0.001mA | Number of Elements | 2 |
| Reverse Recovery Time (trr) | 5ns | Current - Reverse Leakage @ Vr | 1µA |
| Current - Average Rectified (Io) | 300mA | Current - Peak Pulse (10/1000us) | 0.001kA |
| Voltage - Reverse Standoff (Typ) | 40V | Current - Continuous Drain (Id) @ 25degC | 0.3A |
Mechanical
| Width | 1.3mm | Height | 0.95mm |
| Length | 2.9mm | Mounting Type | Surface Mount |
| Number of Pins | 3 | Package Cooled | SOT-23 |
| Package Quantity | SOT-23 | Size / Dimension | 0.95 x 2.9 x 1.3mm |
| Number of Positions | 3 | ||
Product Info
| Diode Type | Schottky | Configuration | Dual |
Environmental
| Operating Temperature | +150 °C | ||
