LT3503EDCB#PBF
| Manufacturer | |
| Description | IC REG BUCK ADJ 1A 6DFN REG, SWITCHING, STEP DOWN, 1A 2.2MHZ |
| Category |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85423990 |
Electrical
| Frequency | :2.4MHz | Regulator Type | :Switching |
| Voltage Rating | :780mV | Current - Output | :1.75A |
| Voltage - Supply | :3.6V | Number of Outputs | :1 |
| Voltage - Input (Min) | :20V | ||
Mechanical
| Weight | 0.00005 | Packaging | :Cut Tape |
| Termination | :SMD | Number of Pins | :6 |
| Package / Case | :DFN | Material Finish | :MSL 1 - Unlimited |
Product Info
| Base Unit | :3503 | ||
Environmental
| Operating Temperature | :-40°C | ||
Similar Parts
744774022
Wurth Electronics
Fixed Inductors Pwr Choke Inductor 2.2uH 20% 4.6A INDUCTOR POWER 2.2UH 4.6A SMD Fixed Inductors WE-PD2 Inductor 2.2uH 10kHz 4.6A CHOKE, SMD, 2.2UH Wurth WE-PD2 系列 屏蔽 绕线贴片电感器, 2.2 μH ±20%, 4.6A Idc
744042004
Wurth Electronics
Fixed Inductors 1720mA, 4.7uH DCR Max=0.082,+/-30% INDUCTOR POWER 4.7UH 1.72A SMD Inductor SMD WE-TPC 4818 4.7uH 1.65A Fixed Inductors WE-TPC Inductor 4.7uH 100kHz 1.72A CHOKE, SMD 4.7UH, 1.72A Wurth WE-TPC 系列 铁氧体芯材 绕线贴片电感器, 4.7 μH ±30%, 1.72A Idc
744042100
Wurth Electronics
Fixed Inductors 1300mA, 10uH DCR Max=0.15, +/-30% INDUCTOR POWER 10UH 1.3A SMD Inductor SMD WE-TPC 4818 10uH 1.3A Fixed Inductors WE-TPC Inductor 10uH 100kHz 1.3A CHOKE, SMD 10UH, 1.3A Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±30%, 1.3A Idc
744042001
Wurth Electronics
Fixed Inductors 2700mA, 1uH DCR Max=0.03, +/-30% INDUCTOR POWER 1.0UH 2.7A SMD Inductor SMD WE-TPC 4818 1.0uH 2.6A Fixed Inductors WE-TPC Inductor 1uH 100kHz CHOKE, SMD 1.0UH, 2.7A Wurth 铁氧体芯材 绕线贴片电感器, 1 μH ±30%, 2.7A Idc
744774122
Wurth Electronics
固定インダクタ WE-PD2 Inductor 22uH 10kHZ 1.28A Ind Power Choke Wirewound 22uH 20% 10KHz Ferrite 1.28A T/R INDUCTOR POWER 22UH 1.28A SMD Fixed Inductors WE-PD2 Inductor 22uH 10kHZ 1.28A CHOKE, SMD, 22UH PD2 Wurth WE-PD2 系列 屏蔽 绕线贴片电感器, 22 μH ±20%, 1.28A Idc

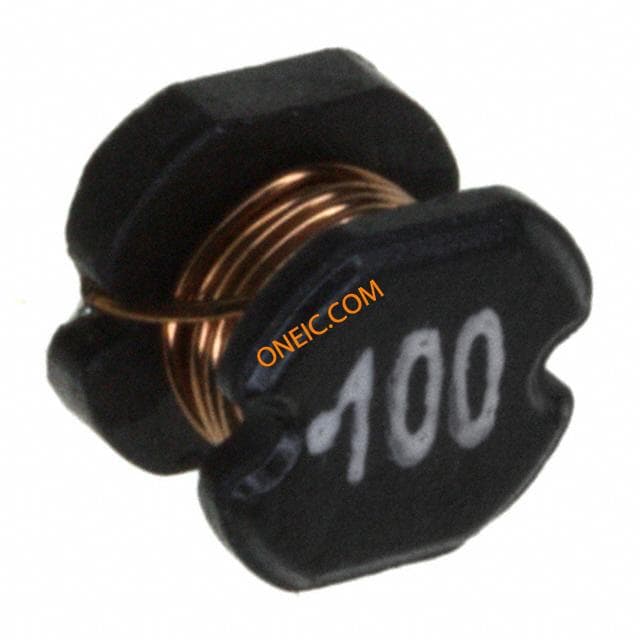

74477410
