点击放大查看
744042100
| Manufacturer | |
| Description | Fixed Inductors 1300mA, 10uH DCR Max=0.15, +/-30% INDUCTOR POWER 10UH 1.3A SMD Inductor SMD WE-TPC 4818 10uH 1.3A Fixed Inductors WE-TPC Inductor 10uH 100kHz 1.3A CHOKE, SMD 10UH, 1.3A Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±30%, 1.3A Idc |
| Category |
Business
| Product | SMD Power Inductors | Other Names | 732-1025-2 |
| Product Category | Fixed Inductors | Standard Package | 800 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | 30 % |
| Inductance | 10 uH | Range deg/s | :WURTH ELEKTRONIK - WE-TPC Series |
| Test Frequency | 100 kHz | Inductance Range | :± 30% |
| DC Resistance (DCR) | 150 mOhm Max | Current Rating (Max) | 1.3 A |
| DC Resistance (DCR) (Max) | :0.15ohm | Frequency - Self Resonant | 45 MHz |
| Current - Saturation (Isat) | :1A | Current Saturation - Series | 1A |
| Resistance - Initial (Ri) (Min) | 0.15 Ohms | Current - On State (It (RMS)) (Max) | :1.3A |
Mechanical
| Depth | 4.8mm | Width | 4.8 mm |
| Height | 1.8mm | Length | 4.8mm |
| Weight | 0.005820 oz | Packaging | Reel |
| Shielding | Shielded | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 1.8 mm | Material - Core | Ferrite |
| Size / Dimension | 4.8 mm W x 4.8 mm L x 1.8 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :4.8mm x 4.8mm x 1.8mm | Height - Seated (Max) | 0.078" (2.00mm) |
Product Info
| Type | SMD Shielded Tiny Power Inductor | Series | WE-TPC |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
744028
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Small Size KIT INDUCTOR TPC SMALL SIZES Wurth Elektronik Small Power Chokes Inductor Design Kit, 7 Pieces INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 7件 电感器套件, 套件包含小功率扼流圈

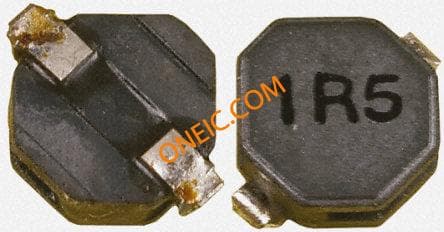

ELL5PS100M
