744774022
| Manufacturer | |
| Description | Fixed Inductors Pwr Choke Inductor 2.2uH 20% 4.6A INDUCTOR POWER 2.2UH 4.6A SMD Fixed Inductors WE-PD2 Inductor 2.2uH 10kHz 4.6A CHOKE, SMD, 2.2UH Wurth WE-PD2 系列 屏蔽 绕线贴片电感器, 2.2 μH ±20%, 4.6A Idc |
| Category |
Business
| Product | SMD Power Inductors | Other Names | 732-1267-2 |
| Standard Package | 1,500 | Factory Pack Quantity | 1500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Unshielded | Qmax @ Th | 35 |
| Tolerance | 20 % | Inductance | 2.2 uH |
| Range deg/s | :WURTH ELEKTRONIK - WE-PD2 Series | Test Frequency | 1 kHz |
| Inductance Range | :± 20% | DC Resistance (DCR) | 41 mOhm Max |
| Current Rating (Max) | 4.6 A | DC Resistance (DCR) (Max) | :0.041ohm |
| Frequency - Self Resonant | 54 MHz | Current - Saturation (Isat) | :8.2A |
| Current Saturation - Series | 8.2A | Resistance - Initial (Ri) (Min) | 0.041 Ohms |
| Current - On State (It (RMS)) (Max) | :4.6A | ||
Mechanical
| Width | 5.2 mm | Weight | 0.0004 |
| Packaging | Reel | Shielding | Unshielded |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 4.5 mm | Material - Core | Ferrite |
| Size / Dimension | 5.2 mm W x 5.8 mm L x 4.5 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :5.8mm x 5.2mm x 4.5mm | Height - Seated (Max) | 0.191" (4.85mm) |
Product Info
| Type | SMD Power Inductor | Series | WE-PD2 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
LT3503EDCB#TRMPBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3.6V to 20V 6-Pin DFN EP T/R IC REG BUCK ADJ 1A 6DFN LT3503EDCB#TRMPBF, DC-DC Converter, Step Down, 2.4MHz, 6-Pin DFN IC, SW BUCK REG, 1A, 2.2MHZ, 6DFN Linear Technology 直流-直流转换器, 降压, 3.6 → 20 V输入, 2.4 MHz, 6针 DFN封装
LT3502EMS#PBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3V to 40V 10-Pin MSOP IC REG BUCK ADJ 0.5A 10MSOP LT3502EMS#PBF, DC-DC Converter, 3.3V Step Down, 1.4MHz, 10-Pin MSOP IC, SW REG, 500MA, 10MSOP DC-DC converter; step up; Uin:3÷40V; Uout:0.8÷36V; 500mA; MSOP10 Linear Technology 直流-直流转换器, 降压, 500mA, 3 → 40 V输入, 1.4 MHz, 10针 MSOP封装
LT3493EDCB#TRMPBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3.6V to 36V 6-Pin DFN EP T/R IC REG BUCK ADJ 1.2A 6DFN Sw. Regulator 1.2A 750kHz Step-Down DFN6 IC, SW REG, 1.2A, 750KHZ, 6DFN Linear Technology 降压 开关稳压器, 1.2A, 0.78 → 50 V, 815 kHz, 6针 DFN封装
LT3686HDD#PBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3.6V to 37V 10-Pin DFN EP IC REG BUCK ADJ 1.2A 10-DFN IC, PWM STEP-DOWN DC/DC CONVERTER, DFN10 BUCK, 37V, 1.2A, 10DFN
LT3502AIDC#TRMPBF
Analog Devices, Inc.
IC BUCK ADJ 0.5A 8DFN IC REG BUCK ADJ 0.5A 8DFN LT3502AIDC#TRMPBF, DC-DC Converter, 3.3V Step Down, 2.8MHz, 8-Pin DFN Conv DC-DC Single Step Down 3V to 40V 8-Pin DFN EP T/R IC, SW REG, 2.2MHZ, 500MA, 8DFN Linear Technology 直流-直流转换器, 降压, 500mA, 3 → 40 V输入, 2.8 MHz, 8针 DFN封装
LT3689EMSE-5#PBF
Analog Devices, Inc.
IC BUCK 5V 0.7A 16MSOP IC REG BUCK 5V 0.7A 16MSOP
744722
Wurth Electronics Inc

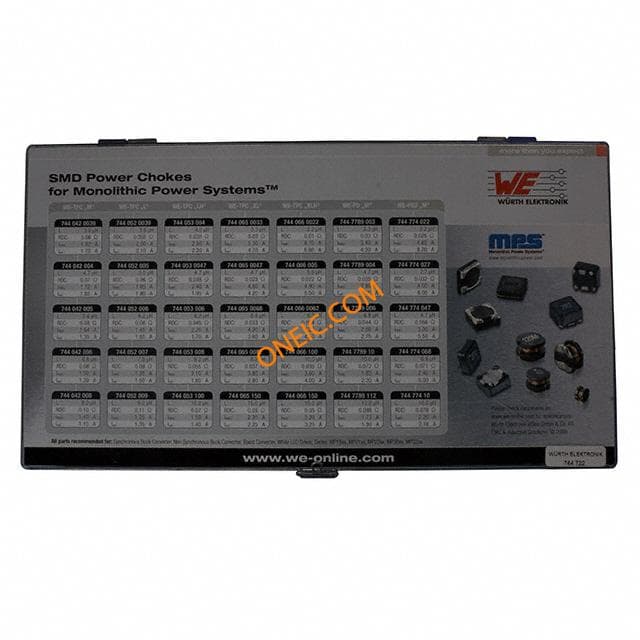

KIT INDUCTOR FOR MPS
