T 3478 009
| Manufacturer | |
| Description | Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN FMALE RCPT 7PS FRONT PNL MT Circular DIN Connectors 7 Pin female; Front Pnl Mnt connector, circular din, female panel recept, front mt, 7 silver-pltd solder cont |
| Category |
Business
| Part # Aliases | 009 3478 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Threaded | Housing Material | Die Cast |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 7 |
| Dielectric Material | Thermoplastic | Number of Positions | 7 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Gender | RCP |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts

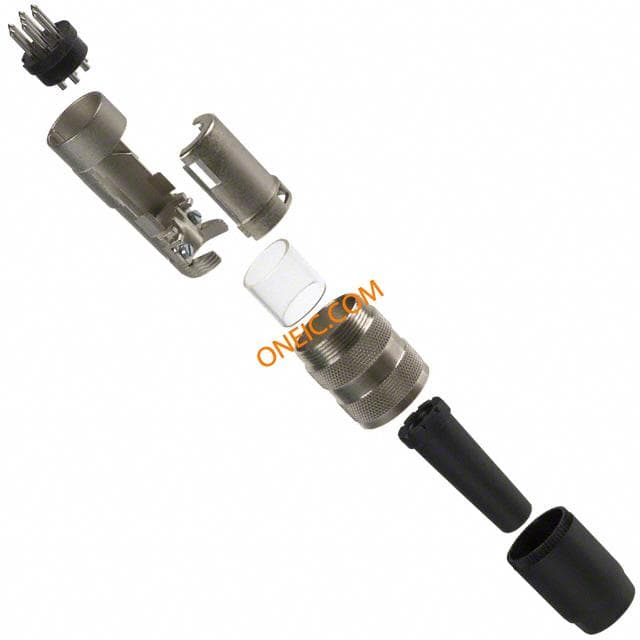

T 3475 001
amphenol
Conn Circular M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN CIR MALE 7POS CBL MNT Circular DIN Connectors 7P CABLE PLUG PLUG, FREE, C091A, 7WAY connector, circular din, str male cable connector, 7 silver-plated solder contact Cable connector, C091A 7-pin Poles=7, T 3475 001, Amphenol

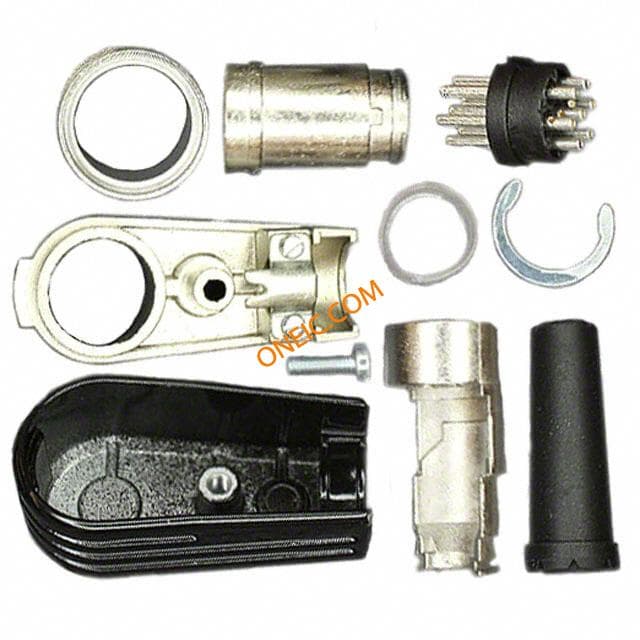

T 3475 005
