点击放大查看
T 3475 005
| Manufacturer | |
| Description | Circular DIN Connectors 7 Pin Male;R/A Cable Mount CONN MALE 7POS CABLE MNT R/A CONN MALE 7POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 7 silver pltd solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40 Cable plug angled series C091A 7-pin Poles=7, T 3475 005, Amphenol |
| Category |
Business
| Part # Aliases | 005 3475 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Standards | UL E63093 |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Number of Poles | 7 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Weight | 0.04 kg | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20 AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line), Right Angle | Shell Plating | Nickel |
| Angle of Throw | Right | Cable Diameter | 4 mm to 6 mm |
| Cable End Type | 3...6 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | for cable |
| Package / Case | Metal | Connector Usage | Threaded |
| Locking Feature | threaded joint, external thread | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Primary Material | DIN |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 7 | Dielectric Material | Thermoplastic |
| Number of Positions | 7 | Shell Size - Insert | DIN |
| 1st Connector Gender | Male | Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Type | Cable Plug | Design | Cable plug |
| Gender | Male | Series | C 091 A |
| Features | Shielded, Strain Relief | Manufacturer | C091-A Series |
| Product Type | Connectors | Adapter Series | C091A |
| Number of Units | 1 | Connection Method | 0.5 |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3478 100
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN FMALE RCPT 7POS REAR PNL MT Circular DIN Connectors 7P DIN REAR MOUNT CONNECTOR, CIRCULAR, RCPT, 7POS, PANEL connector, circular din, female panel recept, rear mt, 7 silver-pltd solder contact
T 3478 000
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN CIR RCPT FMALE 7POS PNL MNT Circular DIN Connectors 7P PANEL FEMALE connector, circular din, female panel recept, front mt, 7 silver-pltd solder contact Device bushing C091A 7-pin Poles=7, T 3478 000, Amphenol

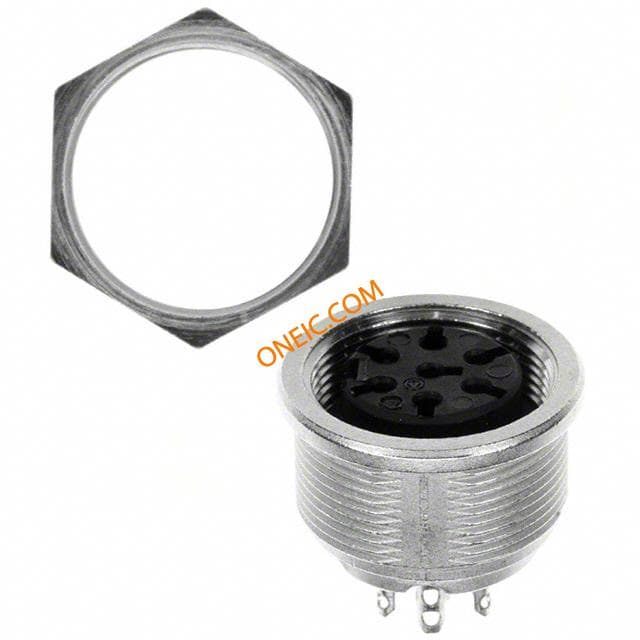

T 3478 009
