点击放大查看
T 3475 001
| Manufacturer | |
| Description | Conn Circular M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN CIR MALE 7POS CBL MNT Circular DIN Connectors 7P CABLE PLUG PLUG, FREE, C091A, 7WAY connector, circular din, str male cable connector, 7 silver-plated solder contact Cable connector, C091A 7-pin Poles=7, T 3475 001, Amphenol |
| Category |
Business
| Part # Aliases | 001 3475 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Rad Hardened | No |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.031 | Diameter | 17 mm |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Form | 7Signal |
| Contact Type | 7Signal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 3-6 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Wire |
| Package / Case | Metal | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :- |
| Contact Material | :- | Housing Material | Die Cast |
| Length - Overall | 67.5 mm | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | M |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 7 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Circular | Gender | :Plug |
| Series | :C091A | Features | Shielded, Strain Relief |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3478 100
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN FMALE RCPT 7POS REAR PNL MT Circular DIN Connectors 7P DIN REAR MOUNT CONNECTOR, CIRCULAR, RCPT, 7POS, PANEL connector, circular din, female panel recept, rear mt, 7 silver-pltd solder contact
T 3478 000
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN CIR RCPT FMALE 7POS PNL MNT Circular DIN Connectors 7P PANEL FEMALE connector, circular din, female panel recept, front mt, 7 silver-pltd solder contact Device bushing C091A 7-pin Poles=7, T 3478 000, Amphenol
T 3478 009
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN FMALE RCPT 7PS FRONT PNL MT Circular DIN Connectors 7 Pin female; Front Pnl Mnt connector, circular din, female panel recept, front mt, 7 silver-pltd solder cont
C091 00U000 120 2
Amphenol Tuchel
Circular DIN Connectors AUDIO DIN DUST CAP PROTECTIVE CAP CAP, FREE, PLUG Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
T 3478 400
Amphenol Tuchel
Circular DIN Connectors 7 Pin female; Rear Pnl Mnt CONN FMALE RCPT 7POS REAR PNL MT

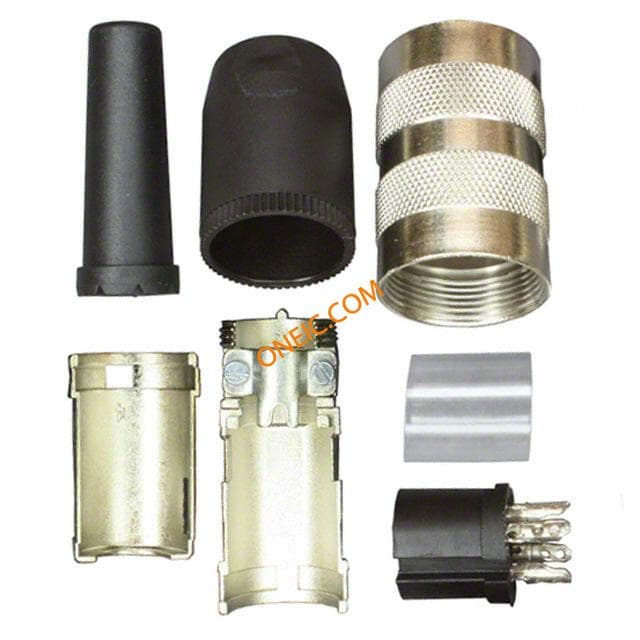

T 3485 001
