T 3476 002
| Manufacturer | |
| Description | Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS CABLE SKT CIRCULAR CONNECTOR, PLUG, 7 WAY, CABLE Cable box, C091A 7-pin Poles=7, T 3476 002, Amphenol |
| Category |
Business
| Other Names | T3476002 | Standard Package | Boxed |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.05 | Diameter | 17 |
| Packaging | Bulk | Cable Exit | Yes |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 7Signal | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Length - Overall | 62 | 1st Contact Gender | F |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Number of Positions | 7 | Shell Size - Insert | DIN |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Circular | Gender | :Plug |
| Series | :C 091 A | Features | Cable Clamp, Shielded, Strain Relief |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
Documents & Media
Similar Parts
T 3477 400
Amphenol Tuchel
Circular DIN Connectors 7 Pin male; Rear Mount CONN MALE RCPT 7POS SLD REAR MT CONNECTOR, CIRCULAR DIN, PANEL RECEPTACLE, REAR MOUNT, PCB DIP SOLDER, 7 PIN CONTACT
T 3477 009
Amphenol Tuchel
Circular DIN Connectors 7 Pin male; Front Pnl Mnt CONN MALE RCPT 7POS FRONT PNL MT connector, circular din, male panel recept, front mt, 7 silver-pltd solder contact Connector: circular; Series: C091A; male; socket; silver plated
T 3477 100
Amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN RCPT 7POS PANEL MNT PIN

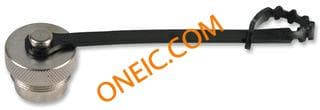

C091-00V000-120-2
