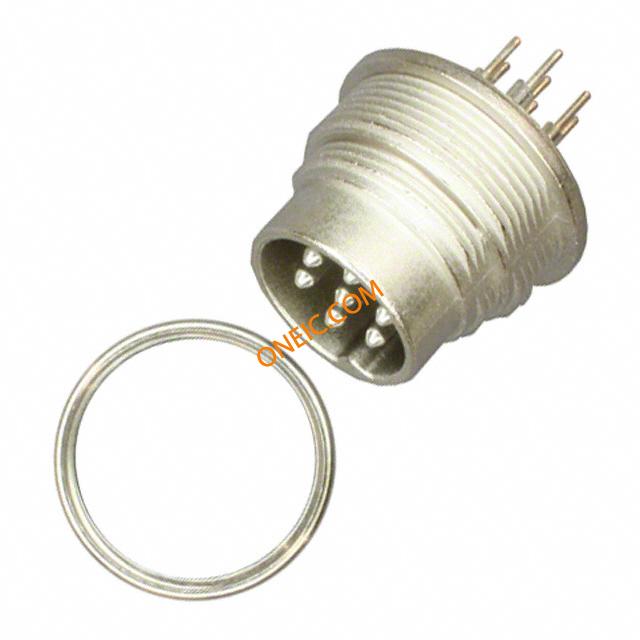

T 3477 400
| Manufacturer | |
| Description | Circular DIN Connectors 7 Pin male; Rear Mount CONN MALE RCPT 7POS SLD REAR MT CONNECTOR, CIRCULAR DIN, PANEL RECEPTACLE, REAR MOUNT, PCB DIP SOLDER, 7 PIN CONTACT |
| Category |
Business
| Part # Aliases | 3477 400 T U | Product Category | Circular DIN Connectors |
| Standard Package | 105 | Factory Pack Quantity | 105 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Contact Resistance | mΩ | Current Rating (Max) | 5A |
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 20 AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | Pin | Mounting Type | Panel Mount; Through Hole |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Package / Case | Metal | Connector Usage | Threaded |
| Housing Material | Die Cast, Nickel Plated | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 7 | Dielectric Material | Thermoplastic |
| Number of Positions | 7 | Shell Size - Insert | DIN |
| Shell Material, Finish | Die Cast, Nickel Plated | ||
Product Info
| Type | Panel Plug | Gender | Male |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Temperature Rating | –40°C to +100°C C | Operating Temperature | -40°C ~ 100°C |
